UNI-T Thermal Imager For Smart Phone UTI260M UTI256M 256x192 Pixel Thermographic Camera Thermal Camera PCB Circuit Failure Test

UTI256M UTI260M Smartphone Thermal Camera

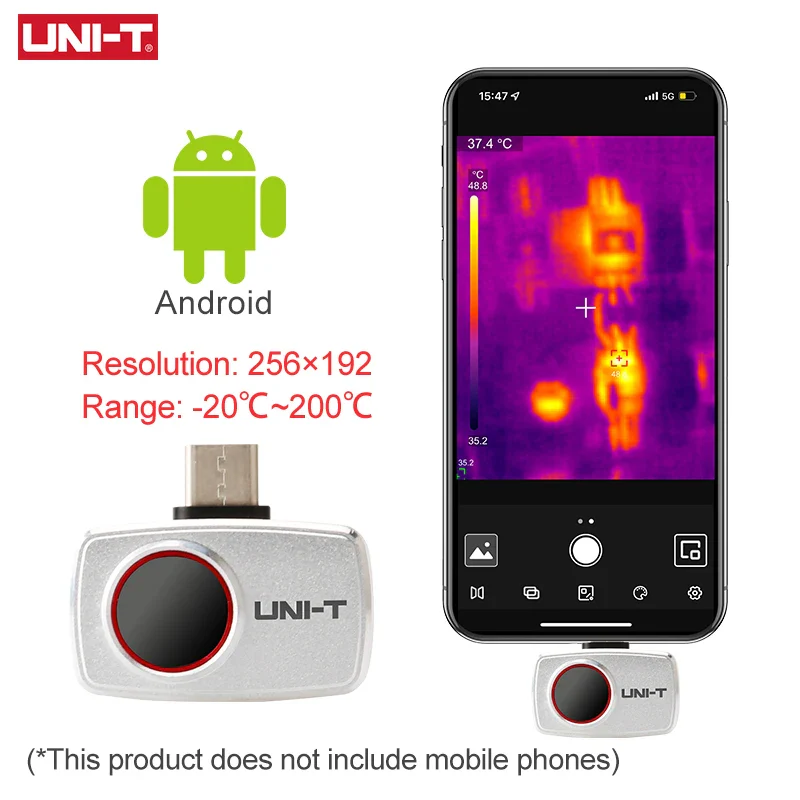

UTI256M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi256M is with wide temperature measurement range -20℃ ~ 200℃.

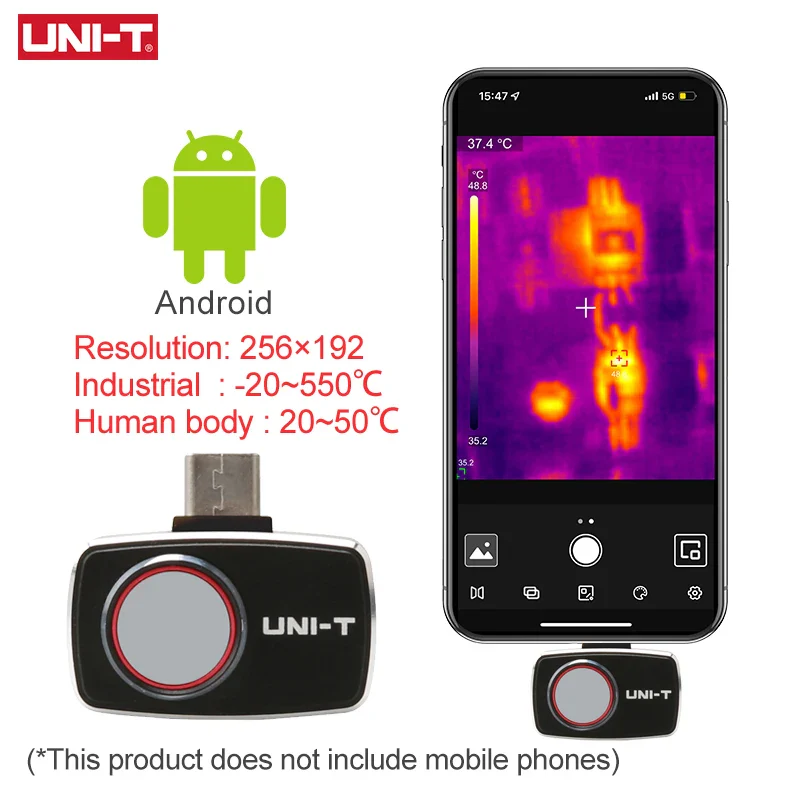

UTi260M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi260M is with wide temperature measurement range -20℃ ~ 550℃.It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features :

1.IR resolution: 256×192（49152）
2.Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉
3.Measurement modes: Industry, EST(Elevated Skin Temperature)
4.Temperature scale: Low gain: -20℃~150℃, High gain: 0℃~550℃
5.Auto alarm for high/low temperature
6.Auto tracking for hot spot/cold spot
7.On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
8.Image capture
9.Video recording
10.Image modes: Thermal, Fusion, PIP

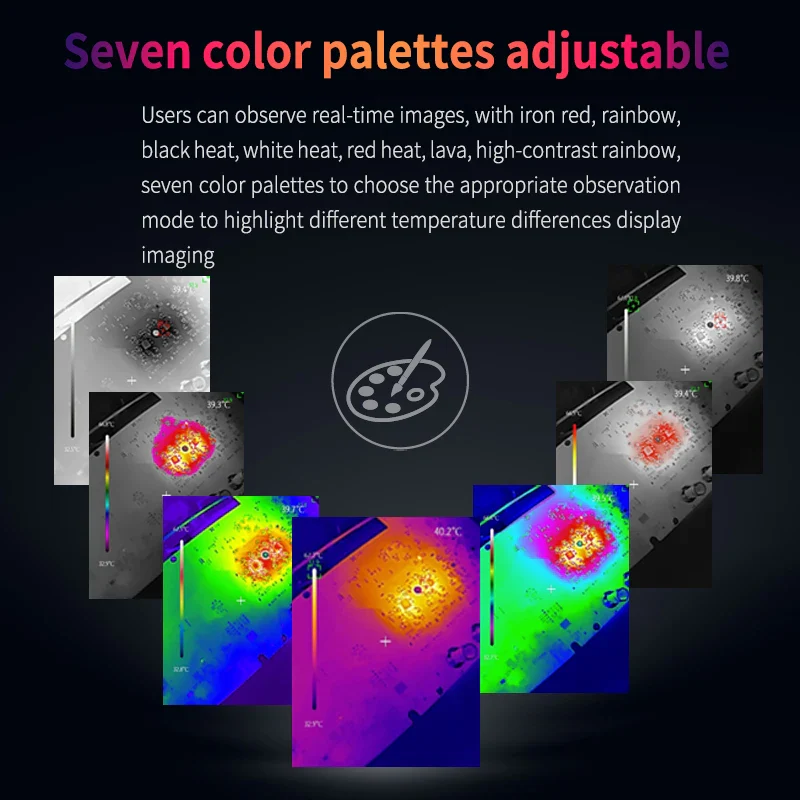

11.Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
12.Phone: Android (USB Type-C interface)
13.1m extension cable
14.2m drop proof
15.UTI256M Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
UTI260M Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉
16.UTI260M Measurement modes: Industry, EST(Elevated Skin Temperature)
