TOOLTOP ET692B Handheld Infrared & Visible Light Thermal Imager 160*120 Thermal Camera 25Hz Floor Heating Power Circuit Repair
Note:
1. In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

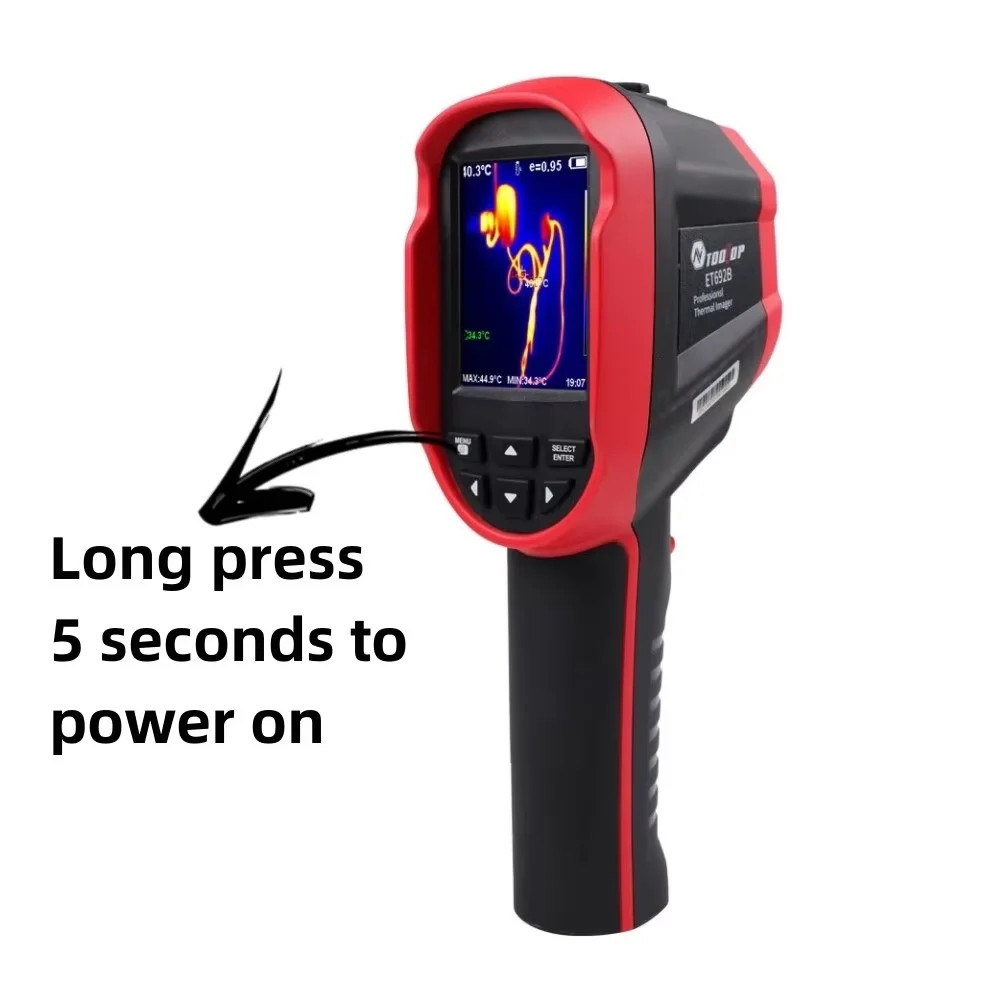

2. Please press and hold for 5 seconds to power on.
Features:
[Sturdy and durable] : high-level protections and industrial-level quality, with comfortable soft rubber buttons
[Highly sensitive infrared sensor]: 160*120 IR sensor ,25Hz frame rate quickly images refreshing, and clear imaging.
[Large Screen] 2.8inch large TFT full viewing angle screen with 640*480 visible light resolution
[Real-time measurement]: with -20℃ to +550℃/-40℉ to +1022℉ measurement ranges, suport ℃ and ℉ switch.
[5 imaging modes design]：rainbow, iron oxide red, cold color, black & white, white & black five imaging modes can be select
[3 imaging display modes]: Infrared mode, visible light mode, infrared visible light fusions mode(25%, 50%, 75%, 100.0%).
[4 languages]: support Chinese/English/German/Italian , time and date setting, with LED light.
[PC analysis] ：Support photo-taking and video recording function, data can be output to the computer through Micro USB, support win xp, win7, win8, win10 system, and support offline analysis on computers.
[Widely used] : In building inspection, vehicle maintenance inspection, automotive parts temperature detection, floor heating detection, electrical inspection, motor fault detection, temperature monitoring of industrial parts, etc.
Specifications:
Name: Thermal Imager
Material: Plastics
Battery: 1 * Removable Rechargeable Lithium Battery,2200mAh(included)
Infrared resolution: 160*120
Infrared response band: 8 to14μm
NETD: ≤50mK @25℃,@F/1.1
Lens focal length: 3.2mm
IFOV: 3.75mrad
Field angle: 35°*27°
Focus mode: Free focus
Temperature measurement ranges: -20℃ to +550℃(-4℉ to 1022℉)
Measurement accuracy: ±2℃(35.6℉) or ±2%
Temperature measurement resolution: 0.1℃
Temperature measurement mode: center point/hot and cold spots tracking
Color palette: Rainbow, iron oxide red, cold color, black & white, white & black
Emissivity setting: Adjustable from 0.01 to 1.00
Thermal imaging frame rate: ≤25Hz
Visible light resolution: 640*480
2.5-inch display size (240 × 320)
Imaging display mode: Infrared/visible light/dual light fusion
Lighting system: LED fill light
Device storage: Built-in 4G eMMC (user available storage space is about 3G)
Storage Images/Video Format: JPG/MP4
Images/video export method: USB connection to computers export
Imaging analysis function: Support offline analysis on computers
Menu language: English、Chinese、Italian、German
Working time: 2 to 3 hours
Power interface: Micro USB
Power configuration: 5 minutes / 20 minutes / no automatic
shutdown
Work temperature: -10℃ to +50℃
Storage temperature: -20℃ to +60℃
Relative humidity: 10% to 85%RH (non-condensing)
Item Size: 96*72*226mm/3.78*2.83 * 8.90in
Item weight: 389g / 0.86lb
Package size: 260*130*90mm/10.24*5.12 * 3.54in
Package weight: 880g / 1.94lb

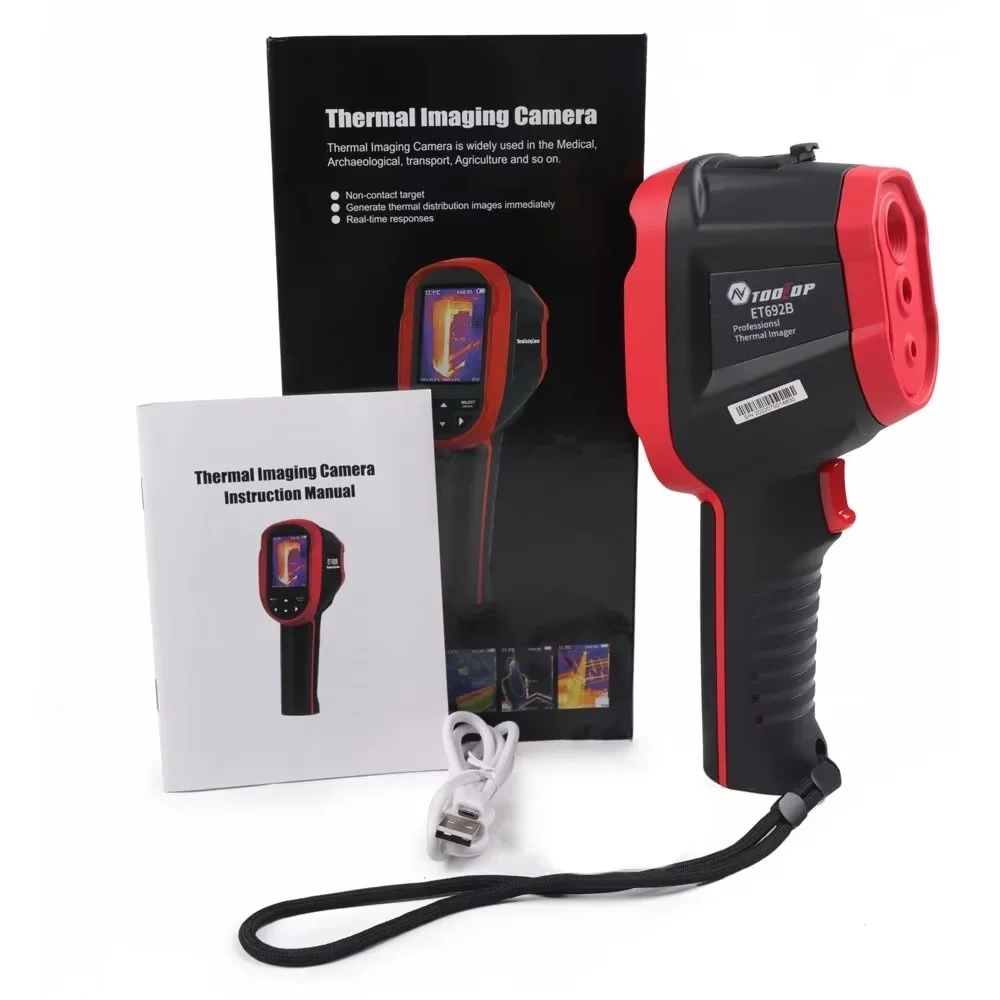

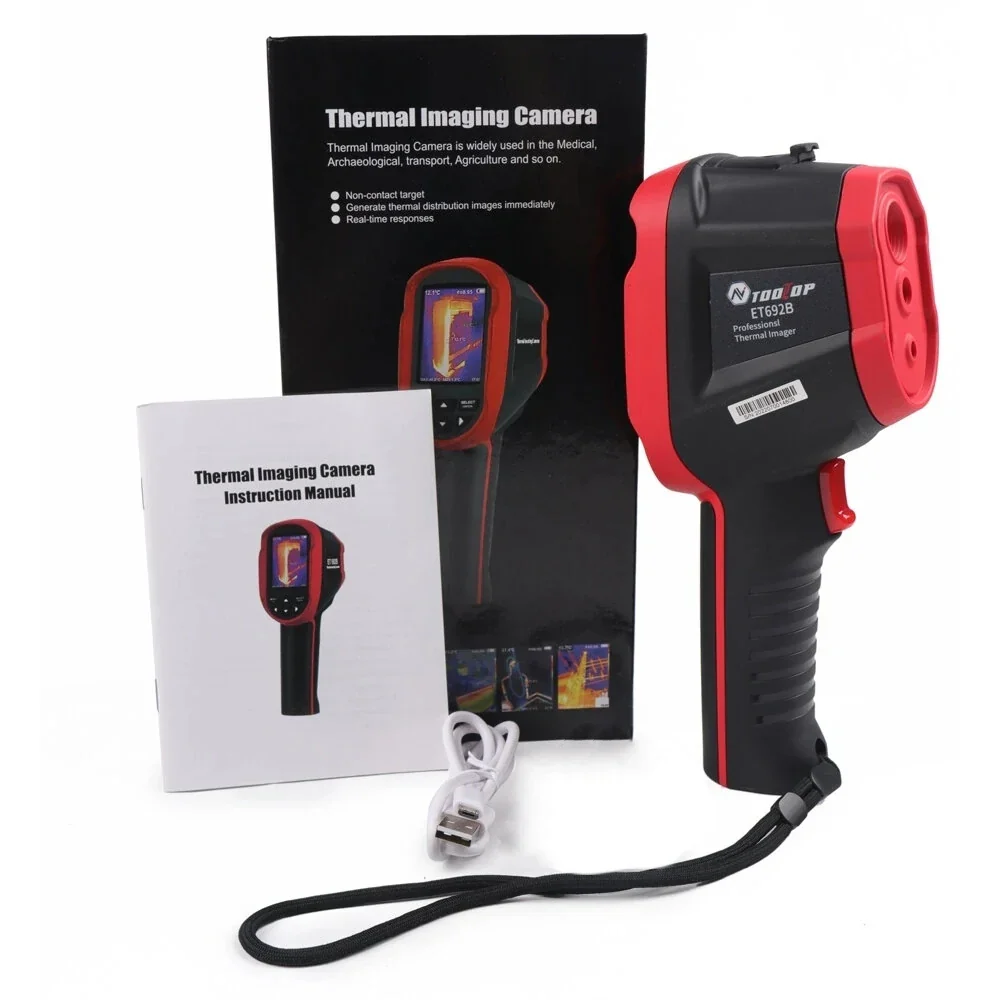

Packing List:
1 x ET692B Thermal Imager
1 x USB Cable
1 x English Manual
1 x Packing Box
