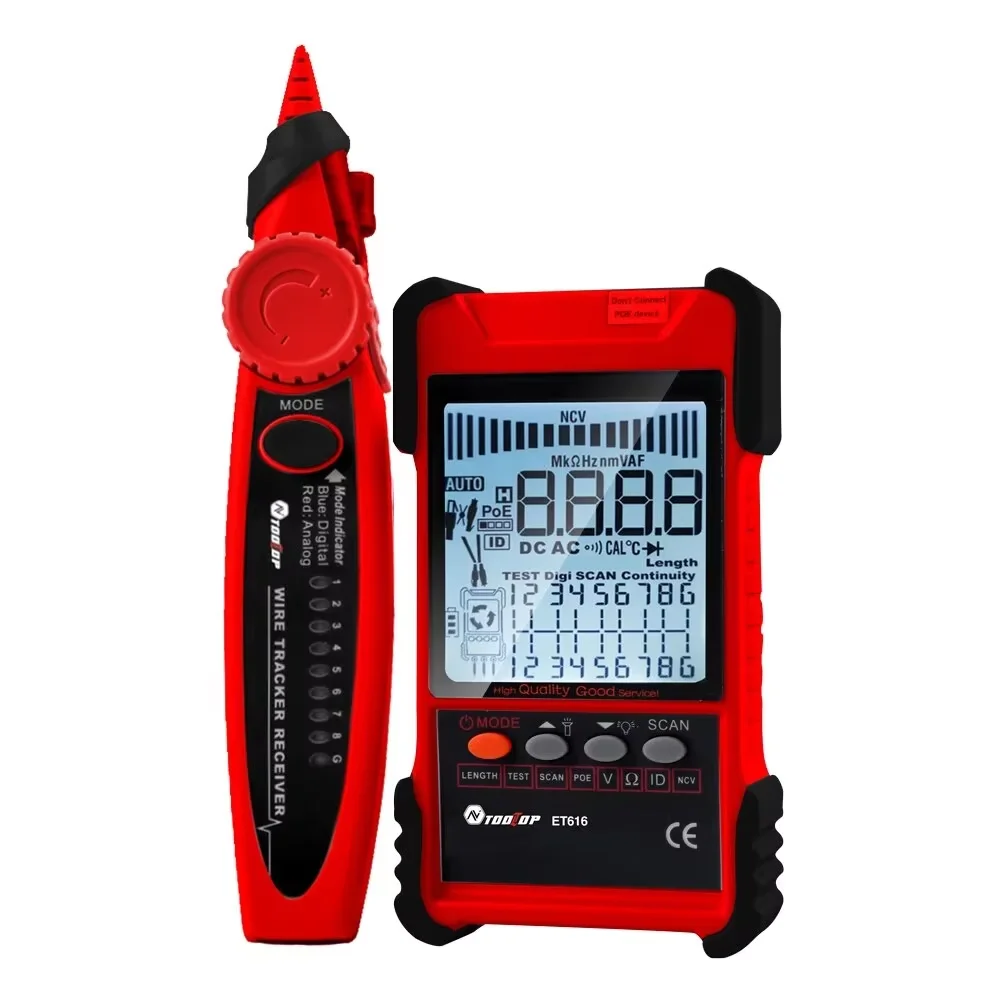

TOOLTOP ET616/ET618 Network Cable Tester Multimeter Anti-noise POE Lan Test 400M/600M Length Measure Sensitivity Adjustable Line Tracker
• Multimeter Lan Cable tracking :This product is designed to track and test network cables, making it easier to identify and fix issues.
• POE Test :With the ability to test Power over Ethernet (POE), this product ensures that your network is running smoothly.

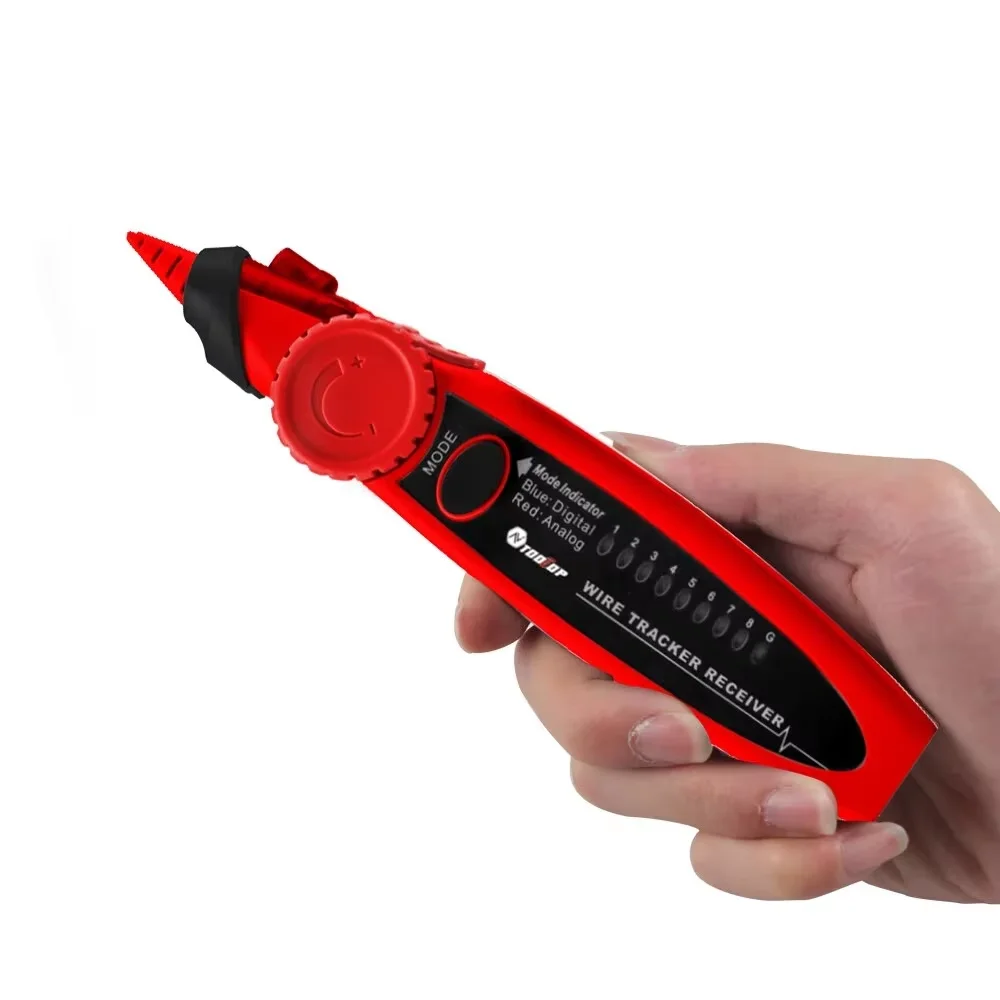

• Adjustable Line Tracker :The adjustable line tracker feature allows you to customize your testing to fit your specific needs.
• 400M/600M Length Measure :This product can measure cable lengths up to 400 meters or 600 meters, making it suitable for a variety of network sizes.
Descriptions:
The instrument combines cable tracking and multimeter((Only ET618))function, with long-distance tracking, clear sound signal, fast and accurate cable length measurement and accurate multimeter function.It is the good tool for laboratory factory, the Radio Amateur ,network installer and the technical personnel.
Features:

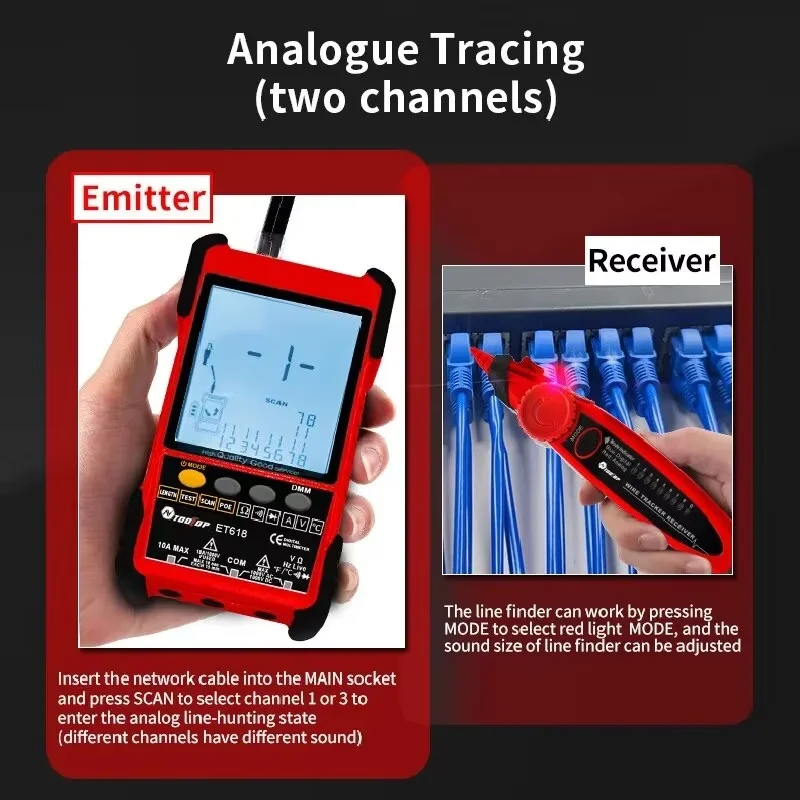

Cable tracking: can quickly and effectively find out the target cable in a large number of cables This function can be used in telephone systems, computers networks, BNC cables and other metal network cables.
Cable Length Test: Can apply to different metal cables with at least 2 cores including network cables, telephone lines and BNC cables.
Real-time measurement: 400/600M network cable length, short circuit and open circuit.
Noiseless digital tracking:use the latest digital noiseless technology, to provide users with a good experience. It’s necessary for computer network telecommunication cable BNC cable and other metal cable engineering.

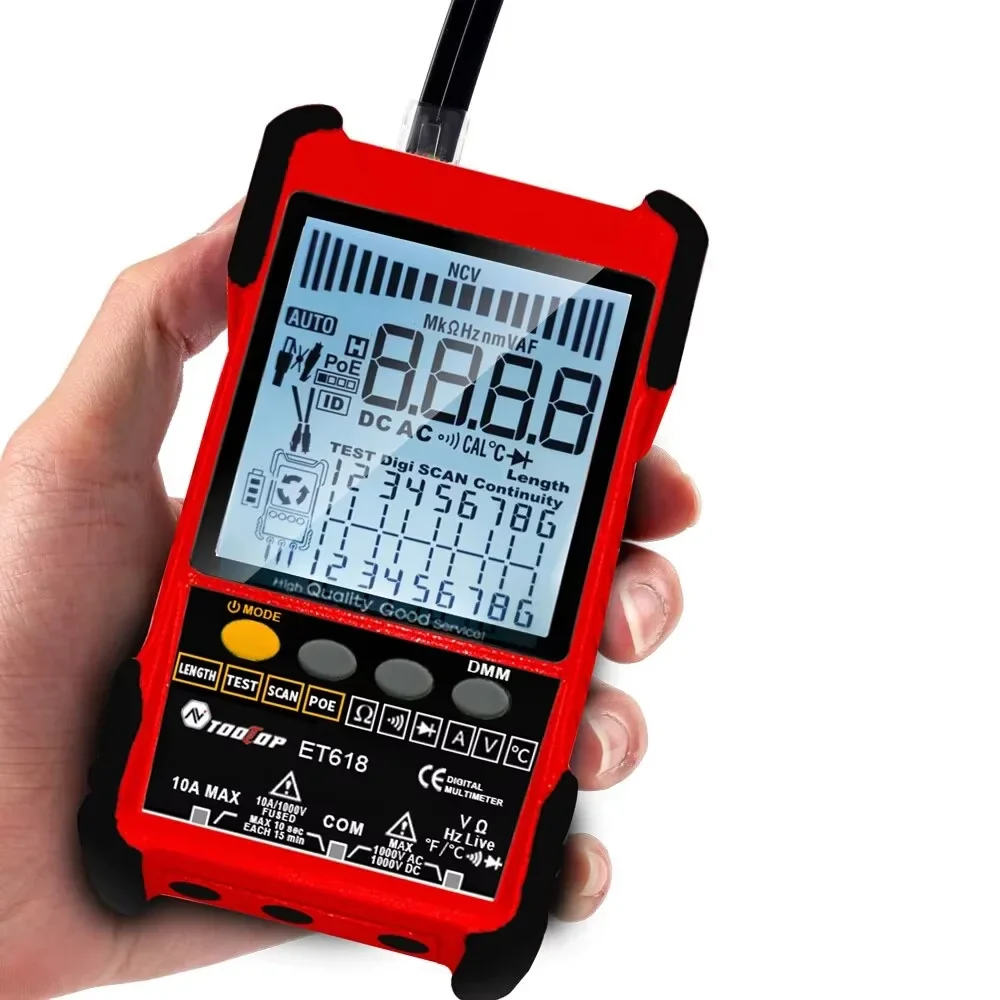

Multimeter Function(Only ET618):This function includes direct current and AC voltage and current measurement, resistance, continuity, diode, temperature measurement.
Multifunctional Cable Tester: This cable tester has the function of analogue tracing, cable mapping, PoE voltage measuring, digital tracing sensitivity adjustable, etc.
Specification:
Material: ABS
Type: ET616/ET618(optional)
Analogue tracing: √
Switch tracing (W/PoE):
Cable mapping: √
Switch indicators flashing: Got
Noisy free digital tracing:
ET616: Digital
ET618: Digital/Vibration
PoE voltage measuring: Only suitable for output voltage devices
Analogue bargraph: √
NCV detection: √
Network Cable Length Measure:
ET616: 400M
ET618: 600M ,support M / Inch unit switch
Power:Host: built-in lithium battery, 1250mAh (included)Receiver: 1 * 9V battery (NOT INCLUDED)
Package weight:ET616: 490g / 1.1lbET618: 585g / 1.3lb
Multimeter Specifications (only ET618):
Direct current voltage: 400mV~1000V±(0.8%+3)
AC Voltage: 4V ~ 400V ±(1.5% + 5)
Direct current current: 1.0A~10.0A±(1.2%+4)
AC Current: 1.0A ~10.0A±(2.0%+5)
Resistance: 2000
Continuity: < 50Ω buzzers beeps
Diode:
Temperature(k type): -20~1000°C±(2.0%+15)
Note:The ID pairing function is implemented with remote ID mapping accessory, you need to buy this accessory by yourself
separately, This accessory is not included in this set.

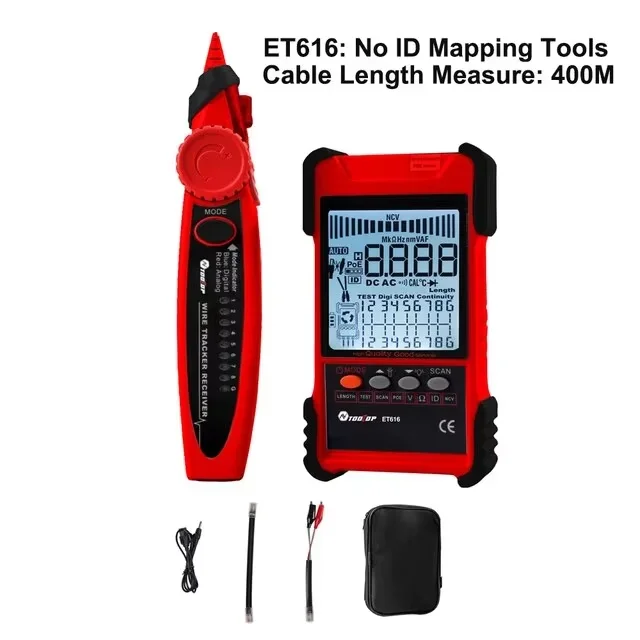

ET616 Packing list:
1 * Host
1 * Storage Bag
1 * Receiver
1 * User Manual
1 * Testing Clip Line
1 * Network Cable
1 * Recharging Line
1 * Storage Bag

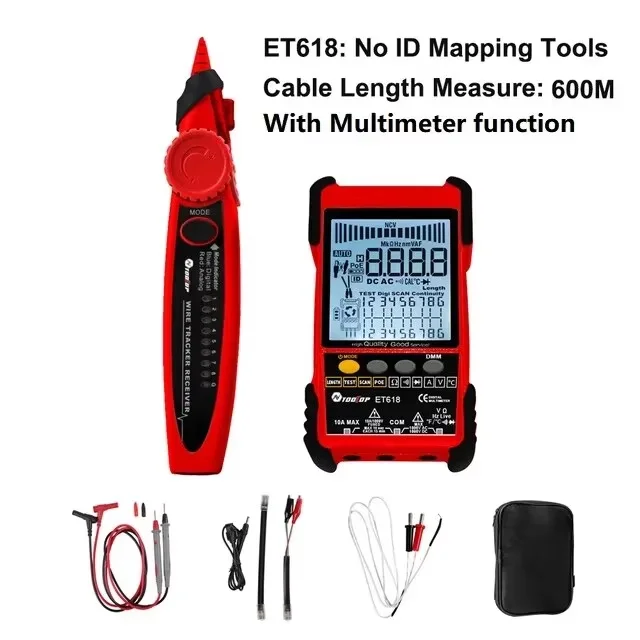

ET618 Packing list:
1 * Host
1 * Storage Bag
1 * Receiver
1 * User Manual
1 * Testing Clip Line
1 * Network Cable
1 * Recharging Line
1 * Temperature Probes
1 * Multimeter Probes
Detail Pictures:
