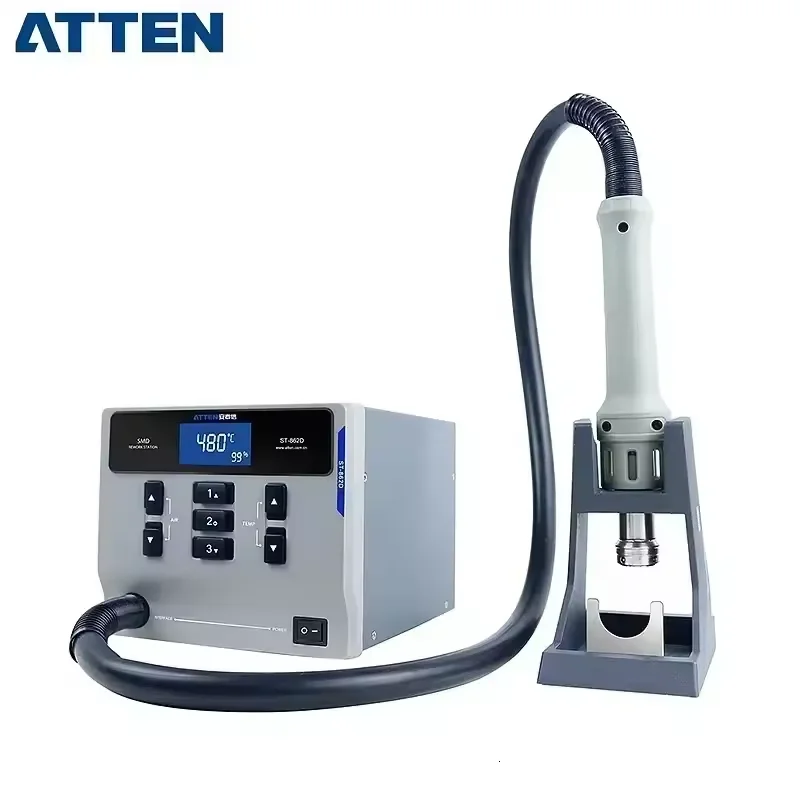

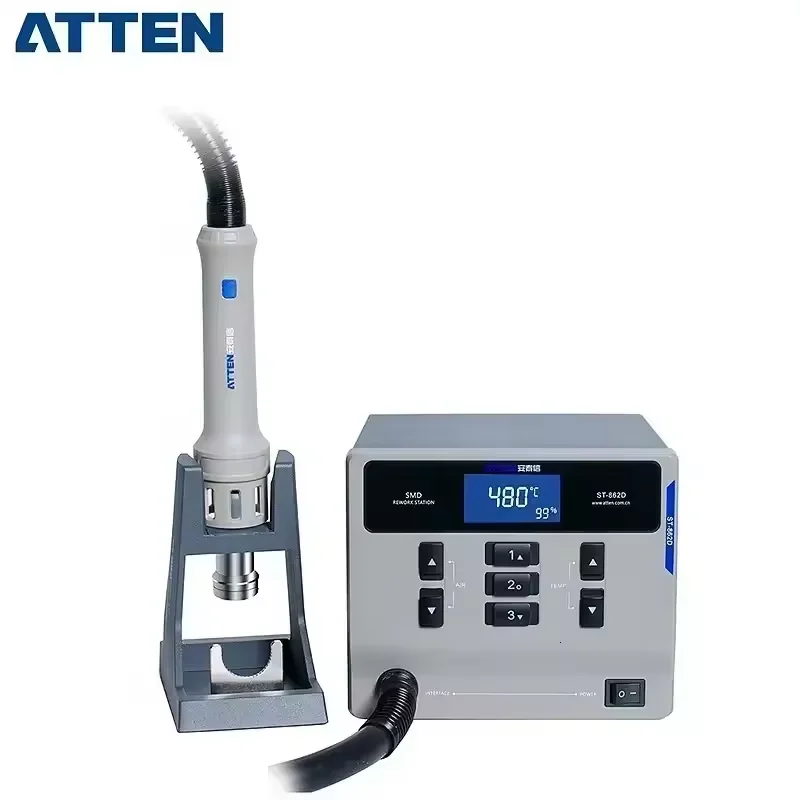

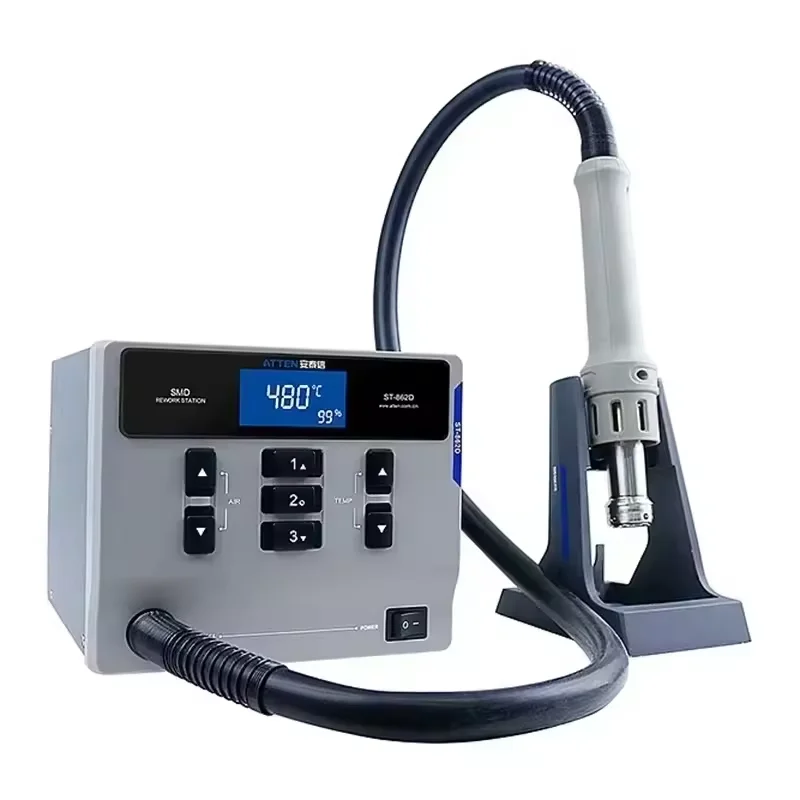

ATTEN Intelligent digital display rework station For PCB chip soldering repair, 1000W Whirlwind ATTEN ST-862D lead-free hot air gun soldering station.

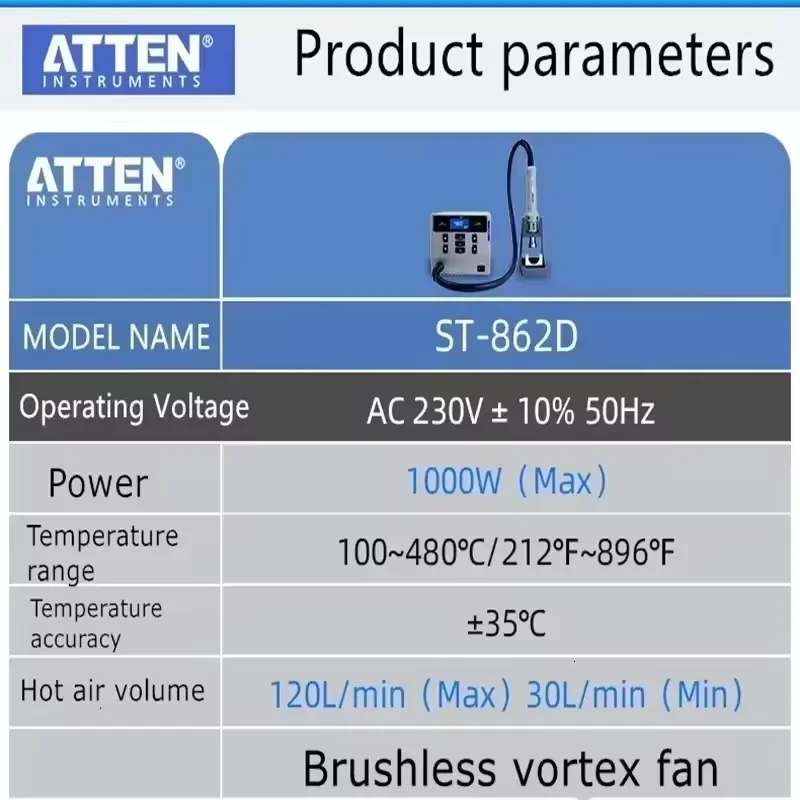

Input Voltage : 220V / 110V
Power: 1000W
Temperature Range: 100~480℃
Maximum Air Flow:120L/min

-The LCD screen displays the operating temperature and status to achieve visual and human-machine interaction.

-Menu-style operation, three sets of fast temperature / air volume access keys to achieve common temperature fast switching, 100 ° C -480 ° C

-Strong airflow with brushless fans

-Plug-in heating chip replacement is fast

-Straight wind and spiral wind convertible

-Automatic sleep

-Temperature lock function, timed work function

-Software calibration temperature control function, temperature compensation, to achieve constant temperature work

Function:

1: Three regular channels are "1", "2" and "3". Each channel's parameters including temperature and airflow can be set.

2: Real time operation by the magnetic switch. It will Cooling status when the handle is placed on holder, When the temperature drops to 100 degrees Celsius into sleep mode.

3: Auto sleeping function. Parameters can be set in sleeping state.

4: Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow.

5: Large power, rapid heating.

6: A multipurpose unit, having brushless whirlpool motor, wide range.

7:  An automatic cooling system can prolong the life time of heating element and protect the handle.
