ZK-1001U 100W Bluetooth 5.3 Mono TPA3116D2 Amplifier Board Module Supports APP AUX USB Flash Drive USB Sound Card DC 9-24V
Product parameters

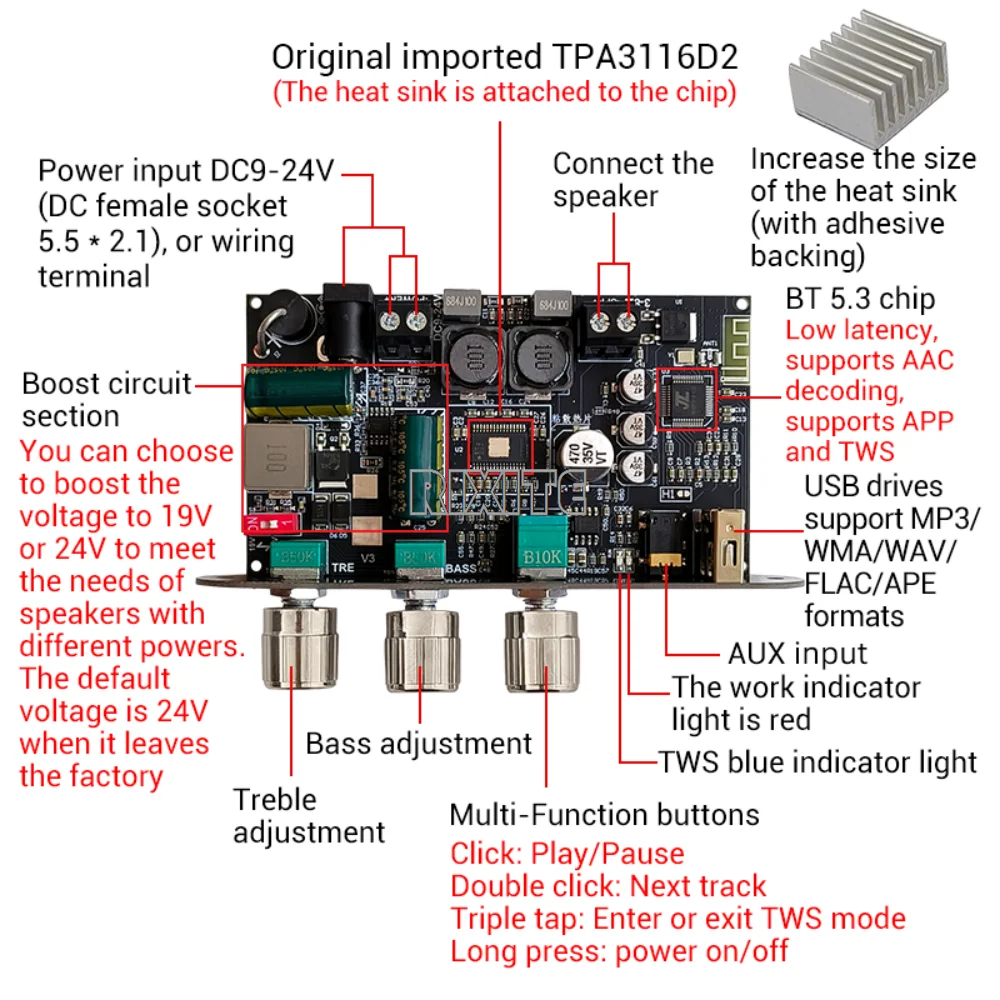

Product name:Mono 100W Bluetooth amplifier board module with boost and high and lows adjustment
Amplifier chip: TPA3116D2
Bluetooth version: 5.3
Bluetooth transmission distance: 15 meters
Audio input: Bluetooth + AUX + USB drive + USB sound card
Audio output: mono 100W
Adaptive power supply: DC9-24V, ≥4A (cannot connect to AC), suitable for batteries such as 7.4V12V21V, not suitable for 24V batteries, and will overvoltage after full charge.
Adaptive speaker: 20-100W, 3-8Ω
Volume adjustment: Total volume with buttons
Click: Play/Pause Double-click: Next song Three-click: Enter or exit TWS mode Long press: Shut down/turn on
Protection mechanism: input anti-connection, over-temperature, over-current, short circuit, anti-static protection
Featured features: Support Wuzhi Audio APP. Modify Bluetooth name, password settings, prompt sound volume adjustment, on/off prompt sound, sleep aid, solid
Upgrades, etc. The box-to-box function and the true wireless function enable the two sets of speakers to be combined into left and right channel box, making the space positioning stronger.

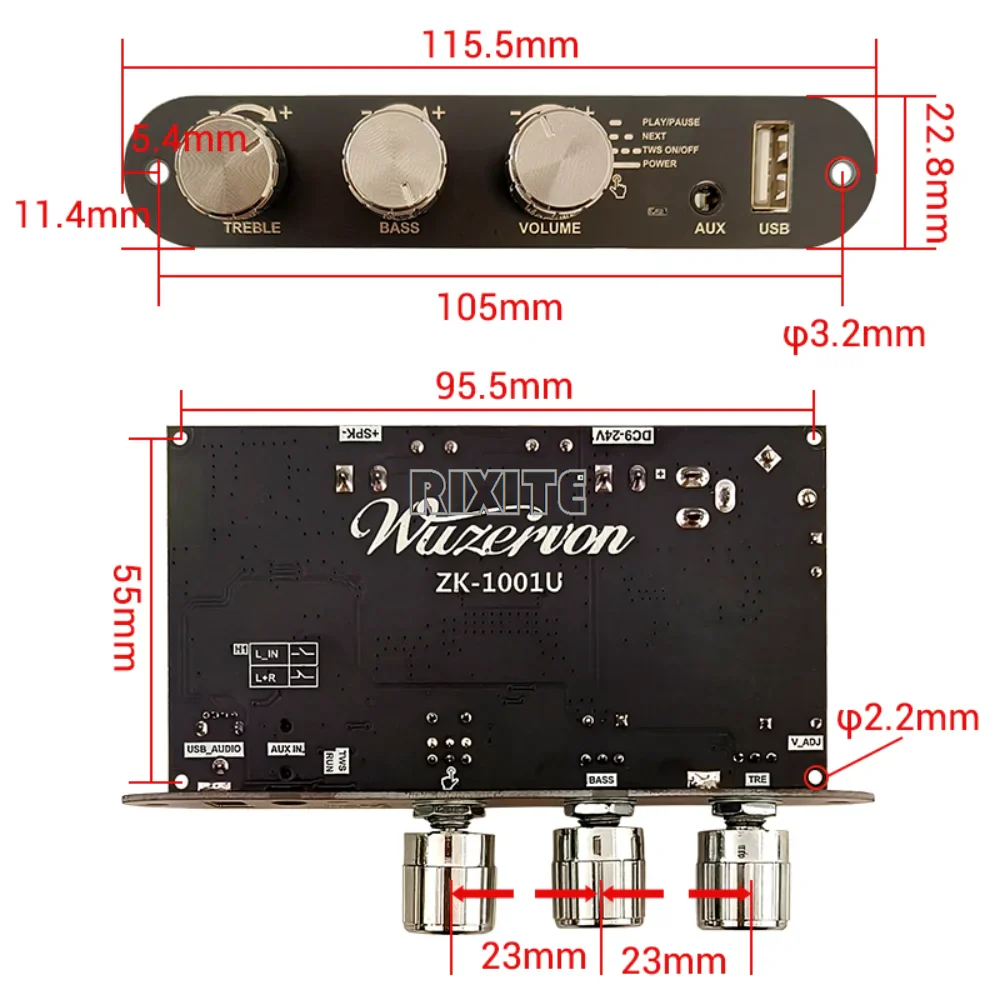

Product size: 99x75x22.8mm
