Promotion! P4100 Oscilloscope Probe 100:1 2KV High Voltage 100Mhz Safety BNC Connector For Oscilloscope Adjustable Attenuation
Promotion! P4100 Oscilloscope Probe 100:1 2KV High Voltage 100Mhz Safety BNC Connector For Oscilloscope Adjustable Attenuation
1. The oscilloscope probe is an electronic component that connects the circuit under test and the input of the oscilloscope. Premium materials and advanced technology enhance feel and construction. The smooth surface is easy to use.
2. High-voltage probes that can withstand 2000V, the grounding alligator clip reliably grounds the probe stage to ensure safe operation and correct signal reading.

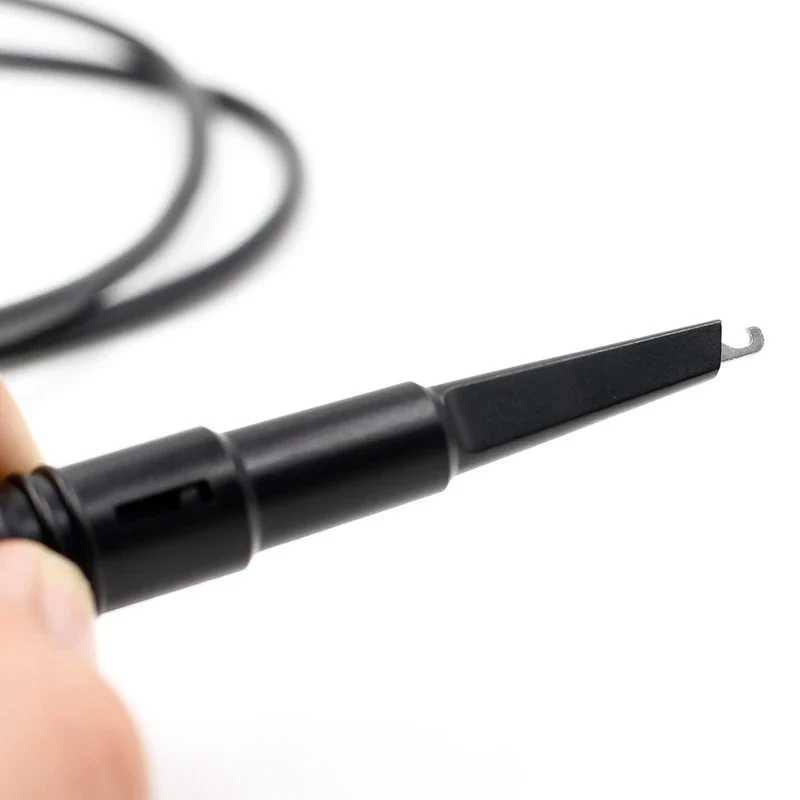

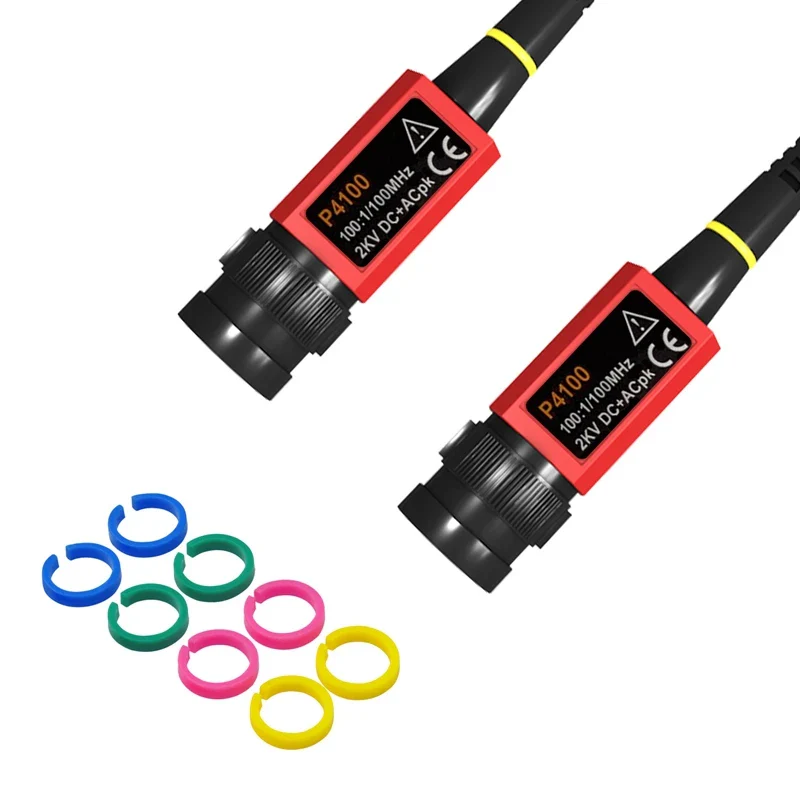

3. The tip of the detachable hook is protected by a plastic sleeve. The positioning sleeve ensures the stability and reliability of the exposed tip at the test point. The 4-color identification ring is compatible with most oscilloscope probe sizes for easy channel identification.
4. The high-voltage oscilloscope probe is compatible with BNC interface, digital oscilloscope, virtual oscilloscope, handheld oscilloscope, etc.
5. Universal 100:1 high voltage oscilloscope test
Model: P4100
Bandwidth: 100MHZ
Rise time: 3.5 ns
Attenuation Ratio: 100X
Input Resistance: 100X : 100M ohm±2 %
Input Capacity: 100X : 6PF
Maximum Input: 100X : 2000 Working Voltage ( Vp-p )
Compensation Range: 10-35PF
Maximum working voltage: 2 KV (Vp-p)

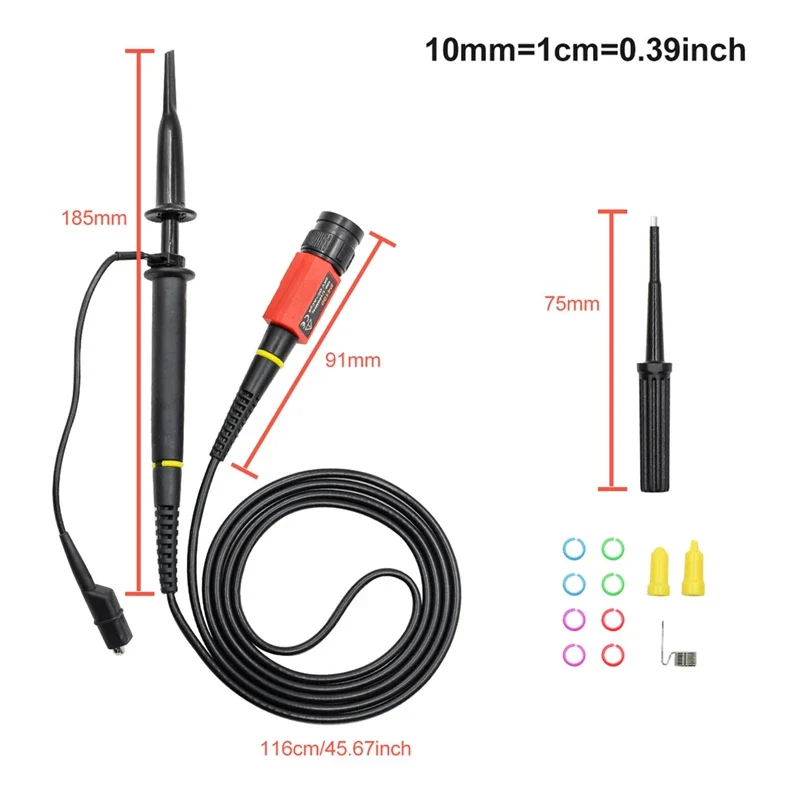

Length: 1.2 meters
color:Black
Material:PVC+Metal

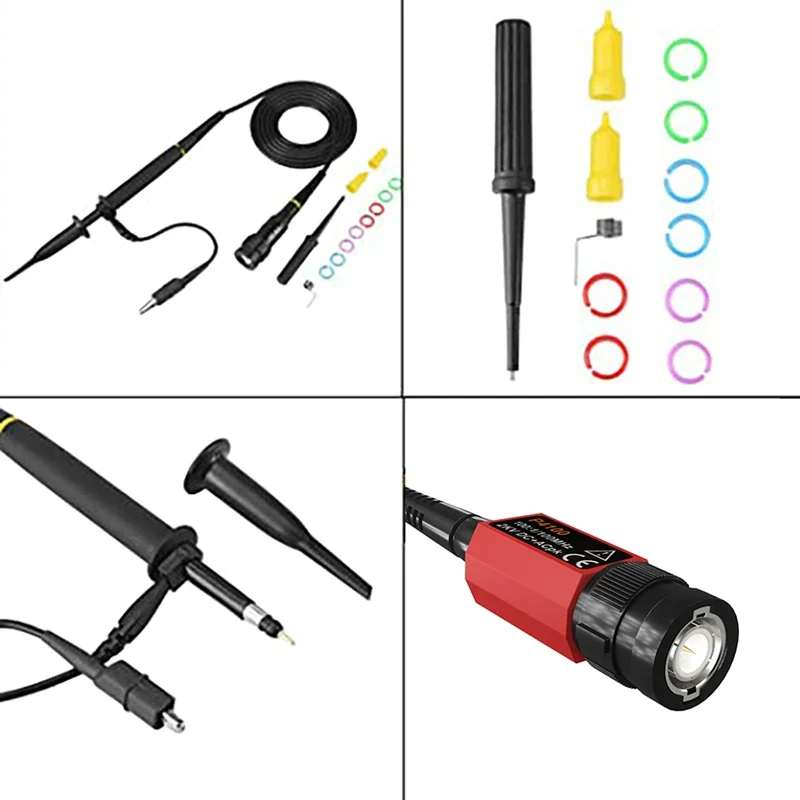

Package Contents:
1 x Oscilloscope probe
4 x color circle
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2. High-voltage probes that can withstand 2000V, the grounding alligator clip reliably grounds the probe stage to ensure safe operation and correct signal reading.
3. The tip of the detachable hook is protected by a plastic sleeve. The positioning sleeve ensures the stability and reliability of the exposed tip at the test point. The 4-color identification ring is compatible with most oscilloscope probe sizes for easy channel identification.
4. The high-voltage oscilloscope probe is compatible with BNC interface, digital oscilloscope, virtual oscilloscope, handheld oscilloscope, etc.
5. Universal 100:1 high voltage oscilloscope test
Model: P4100
Bandwidth: 100MHZ
Rise time: 3.5 ns
Attenuation Ratio: 100X
Input Resistance: 100X : 100M ohm±2 %
Input Capacity: 100X : 6PF
Maximum Input: 100X : 2000 Working Voltage ( Vp-p )
Compensation Range: 10-35PF
Maximum working voltage: 2 KV (Vp-p)
Length: 1.2 meters
color:Black
Material:PVC+Metal
Package Contents:
1 x Oscilloscope probe
4 x color circle
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
      |
