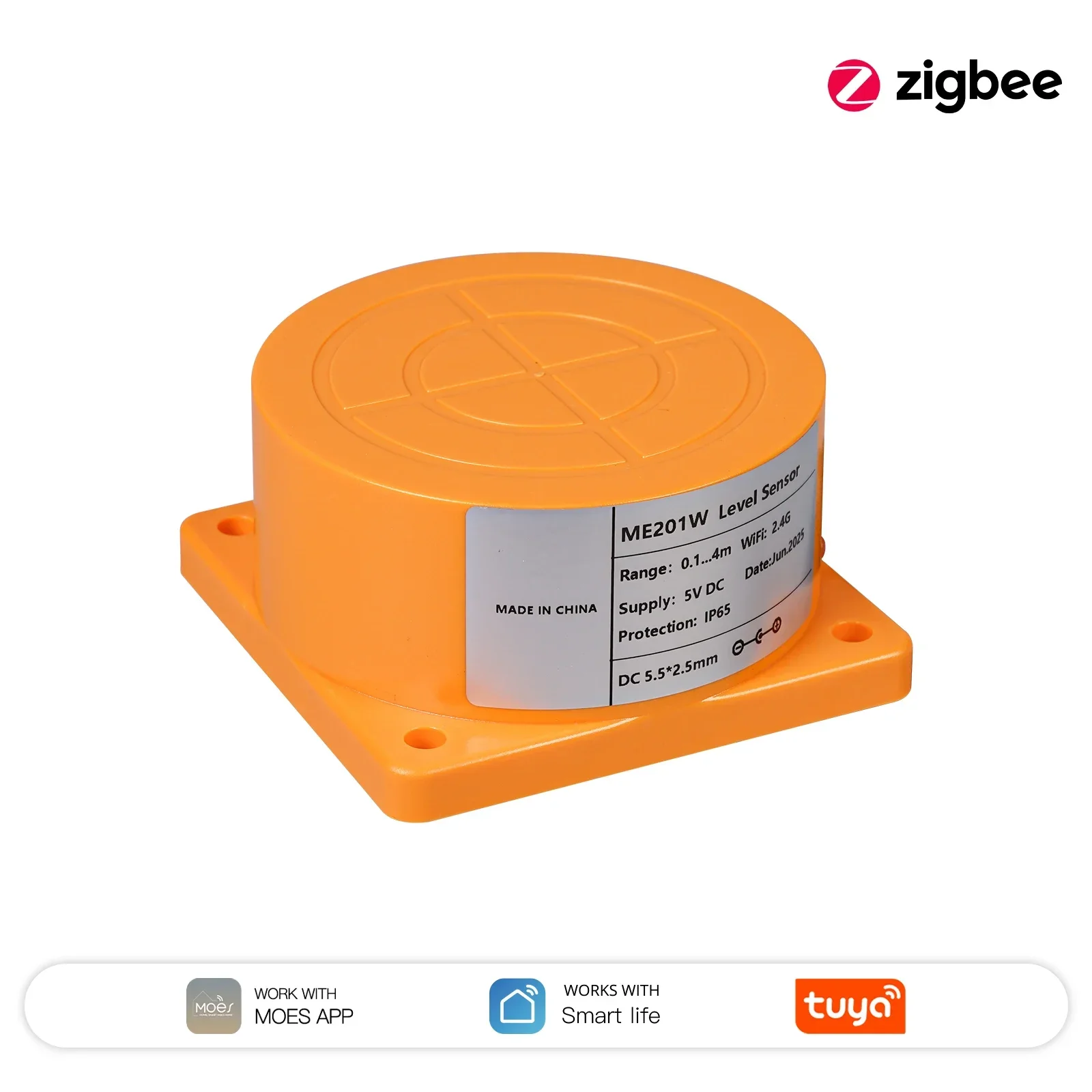

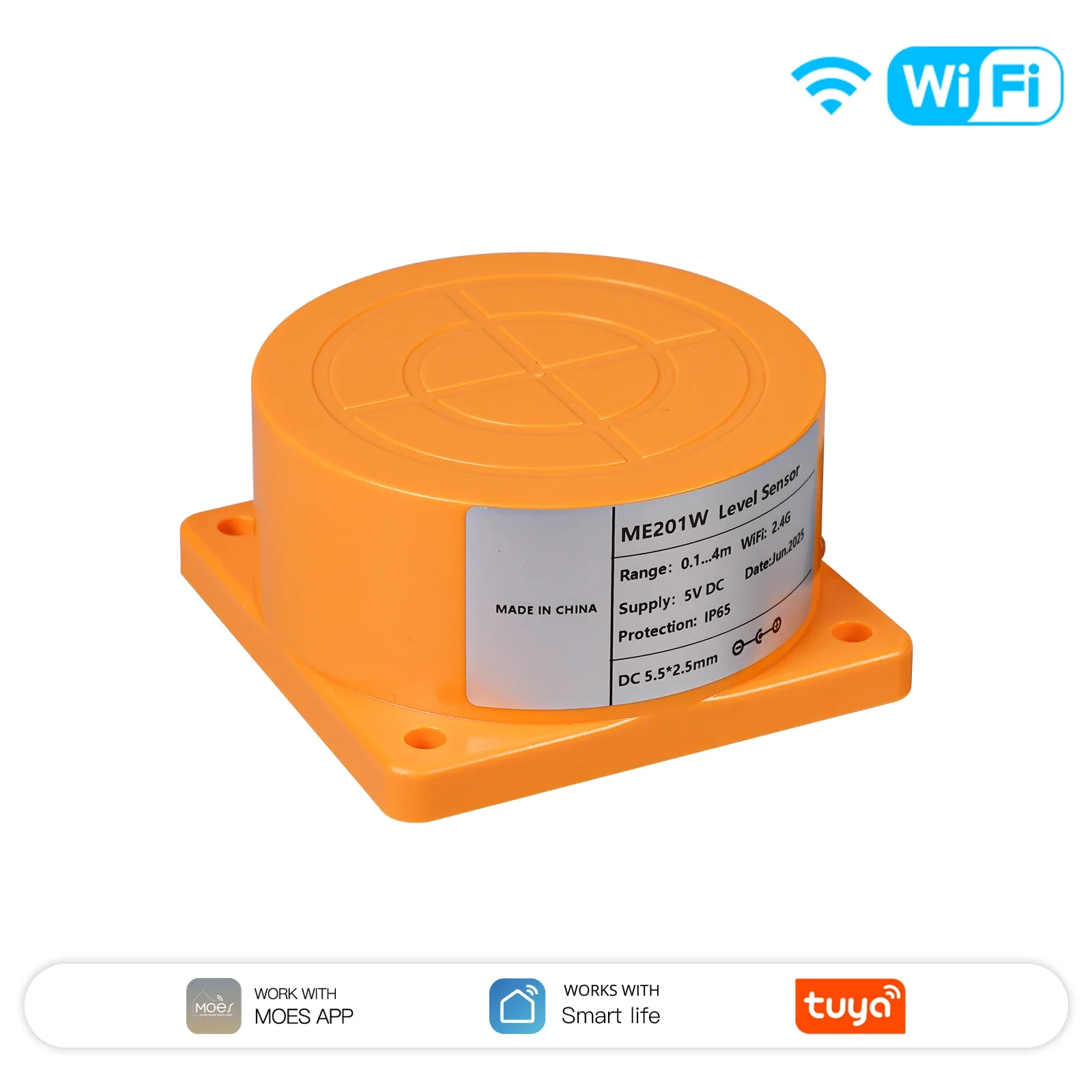

MOES Tuya WiFi/ZigBee Smart Water Level Sensor with APP Alarm Alert, Ultrasonic Tank Monitor, Remote Detector
BY-MOES
Packing List:
Liquid level sensor*1
Screws*4
Gasket*1
EU adapter*1
Sensor cable*1
Manual*1
Note: This product comes in both WiFi and ZigBee versions. The ZigBee version requires a ZigBee gateway to function. Please confirm your preferred model before purchasing.
Note: ZigBee gateway is required（ZigBee version）, please purchase in addition.
IP65 Waterproof Performance
With IP65-rated waterproof protection, this smart level sensor ensures accurate measurement in any weather. Reliable performance indoors and outdoors.

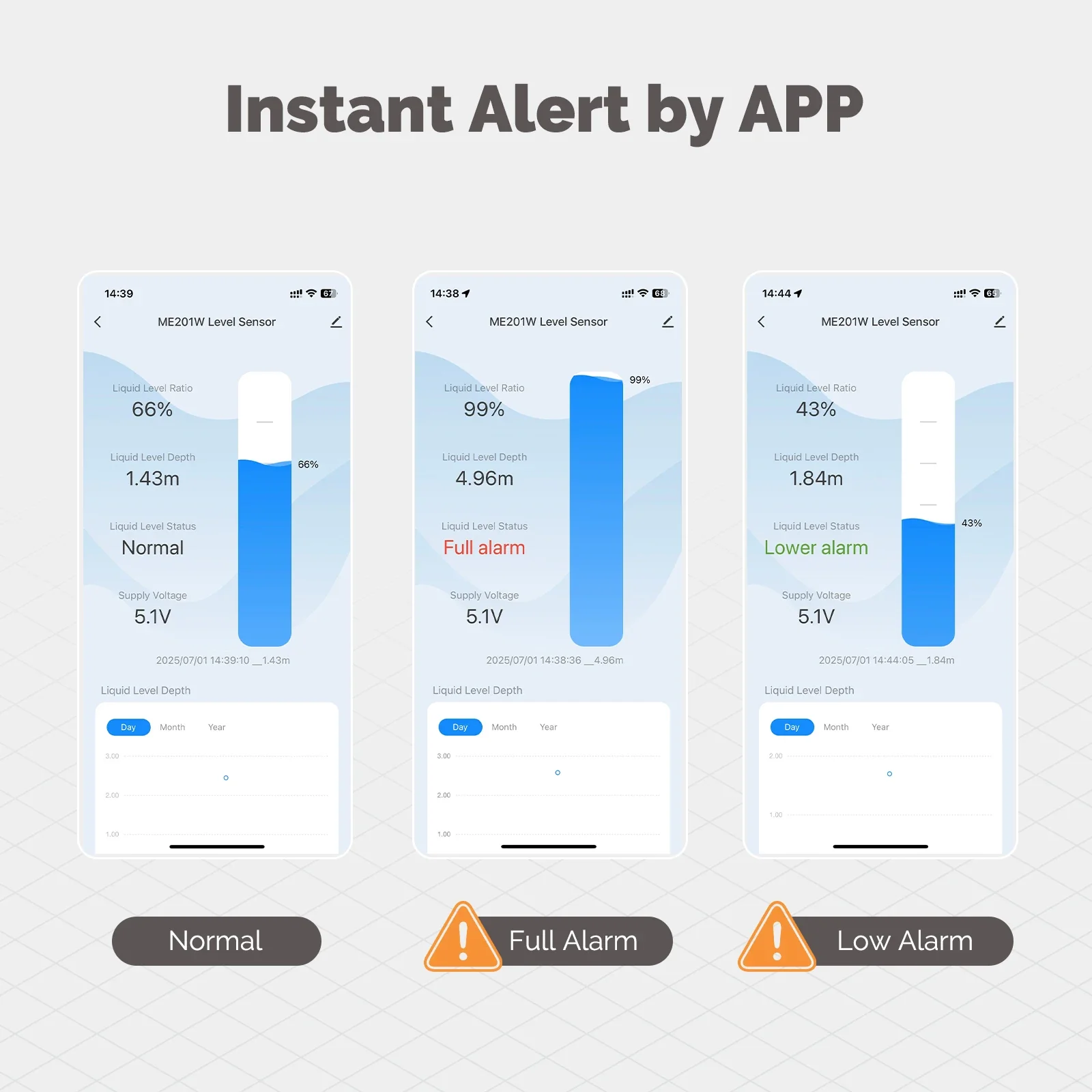

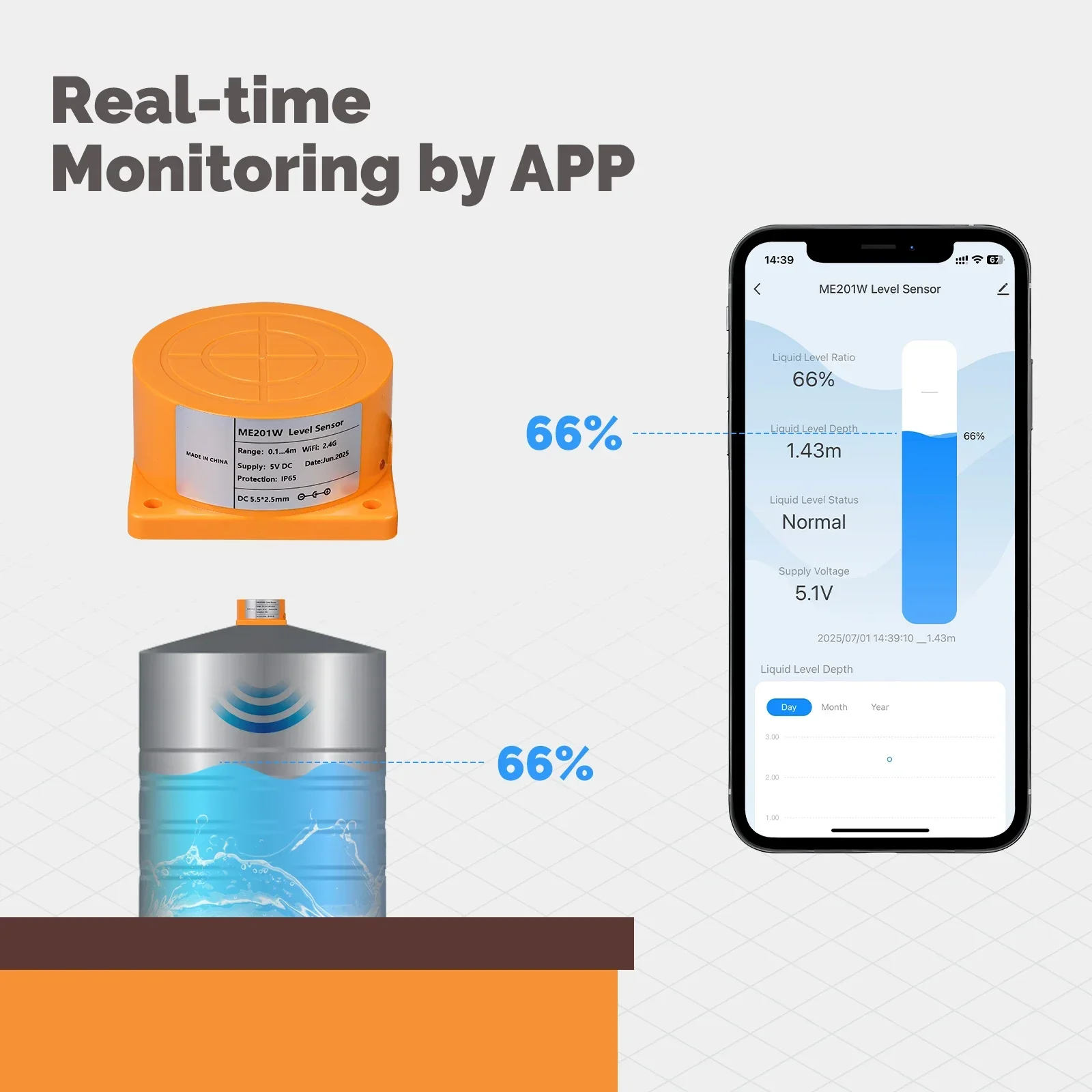

Check Water Curve & History Records
Gain full insight into your tank’s water usage with intuitive curves and detailed history logs.
Extended 4 m Cable — Flexible Long-Distance Setup
Ideal for wide or elevated installations, ensuring precise measurement anywhere.
Customizable Water Level Thresholds

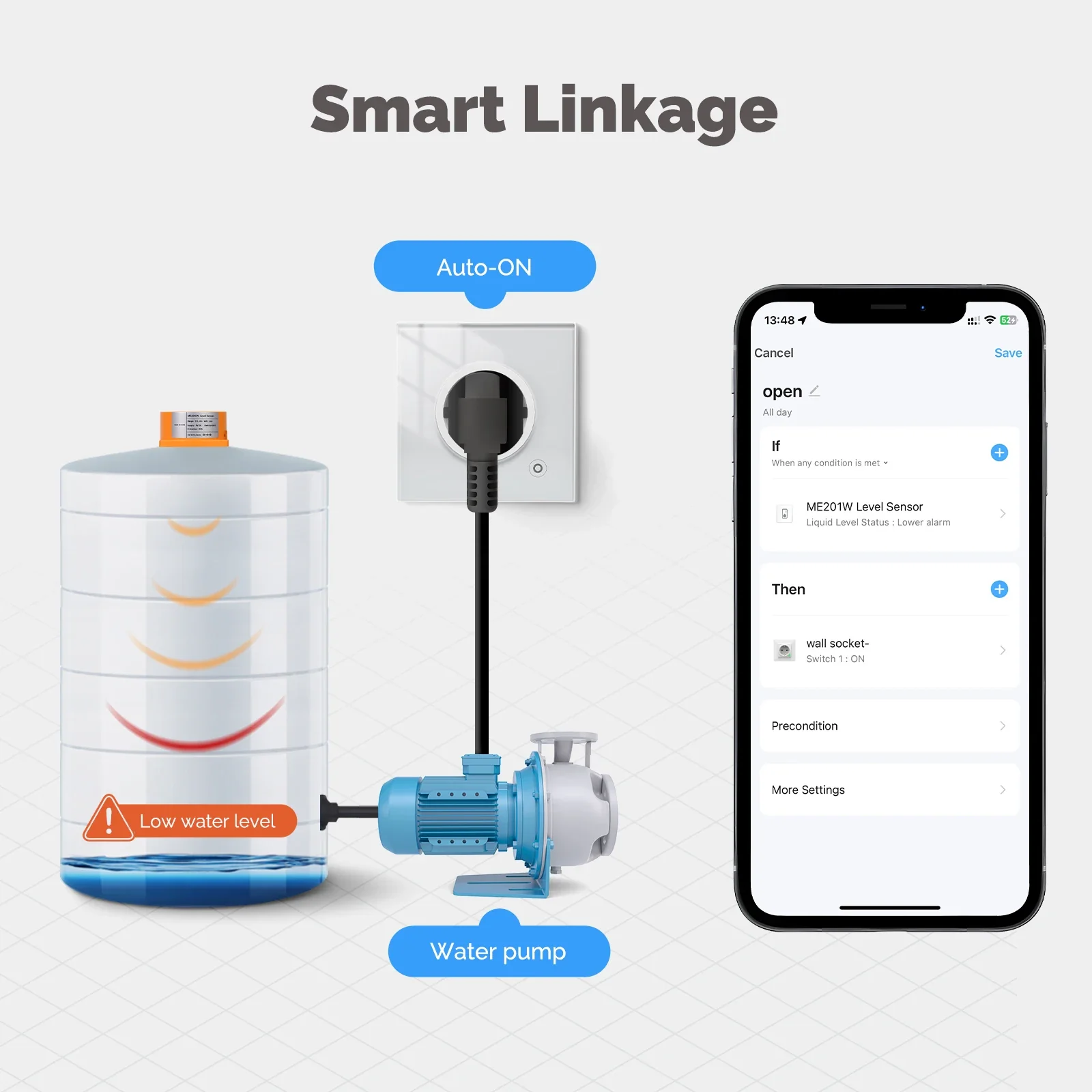

Set upper and lower water level thresholds for smarter overflow and dry-run prevention with App alert.
Precautions before Installation
1. Hold the sensor perpendicular to the liquid.
2. Install the sensor away from the water inlet to avoid pseudo-echo.
3. The sensor installation cannot be close to the bulkhead, otherwise it will cause a strong pseudo-echo.
Installation Steps
① Remove the release paper from the gasket, and attach the gasket to the center of the tank where the hole will be drilled.
② Drill a circular hole right in the middle of the tank with a diameter of 55mm-80mm;
③ Place the sensor over the gasket, Keeping it aligned with the screw holes. unobstructed;
④ Fasten the sensor with a self-tapping screw.
Dimensions
Technical Specifications
Touch Key: Press 5 seconds
Network mode: 2.4G WiFi/Zigbee 3.0
Config: Led light flashes rapidly
Connected: Led light on
Not Connected: Led light off slowly
Adaptor: AC 110V~240V
Sensor power supply: ≤100mA@ 5V DC
Level Range: 0m～5m
Accuracy: ± 0.02m
Operation Temperature: -20℃～70℃
Protection: IP65
