FNIRSI GC-03 3-IN -1 NR+EF+MF Detection Tool



GC-03 is a multifunctional detector, a professional instrument for measuring NR, mainly used in various occasions such as home, office, outdoor environment, etc. It uses a 2.4-inch high-definition color screen and supports real-time monitoring of NR/EF/MF

Key Features:

1. Real-time measurement and alarm function:

The device continuously monitors and displays the measured values of radiation, electric field strength and magnetic field strength and their corresponding units. And evaluates the danger level according to the alarm threshold set for each measured value.

2.Flexible radiation unit settings

The device allows users to select the radiation measurement unit. Available units include μs v/h, uGy/h, mR/h, CPS, CPM, etc.

This function ensures that users can choose the most appropriate unit based on their specific measurement needs and industry standards.

3. Alarm record display function:

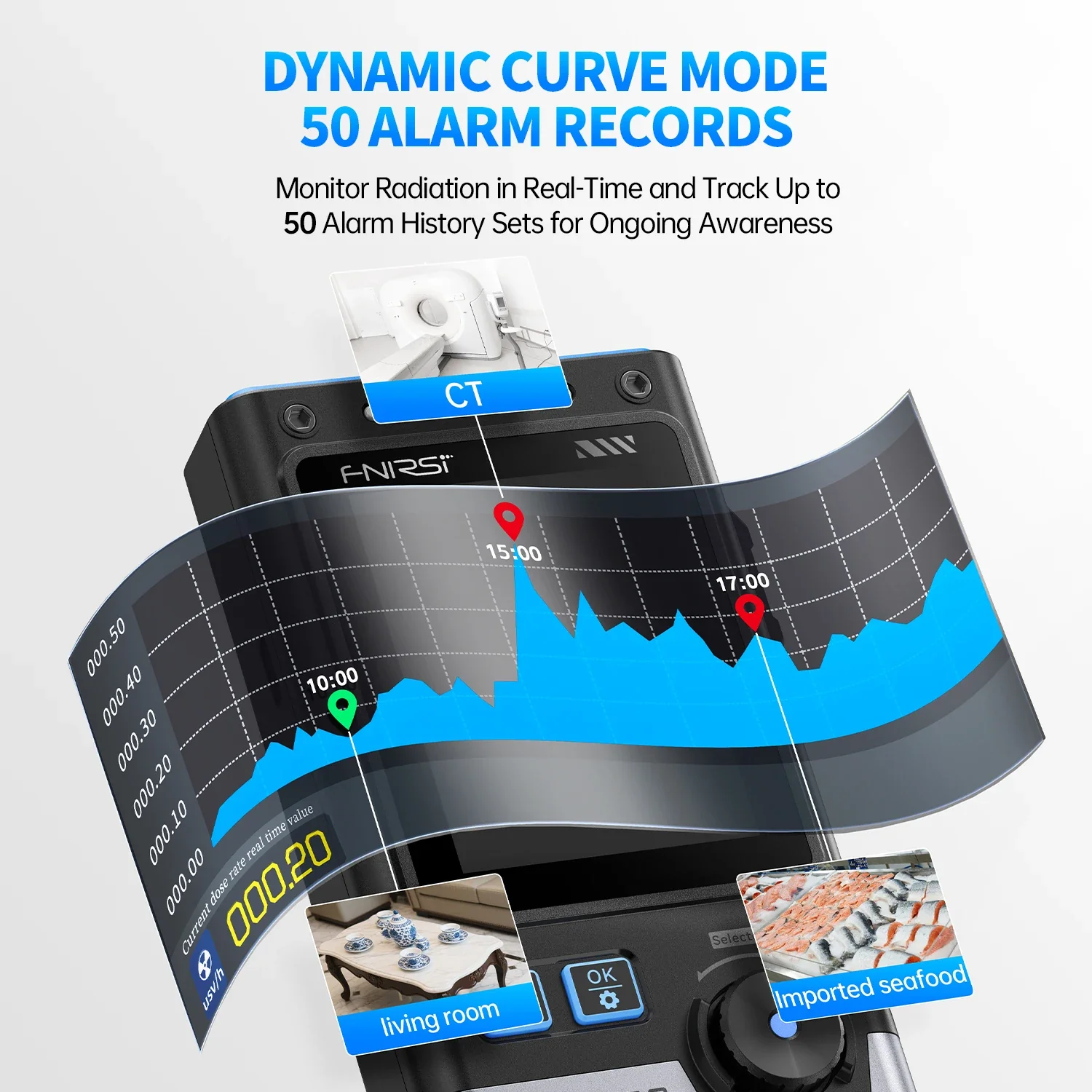

The alarm record page displays the alarm records in sequence, with the serial number increasing from the oldest to the latest. Each record contains the type of data that triggered the alarm (for example, NR/EF/MF) and the specific date and time when the alarm was triggered.

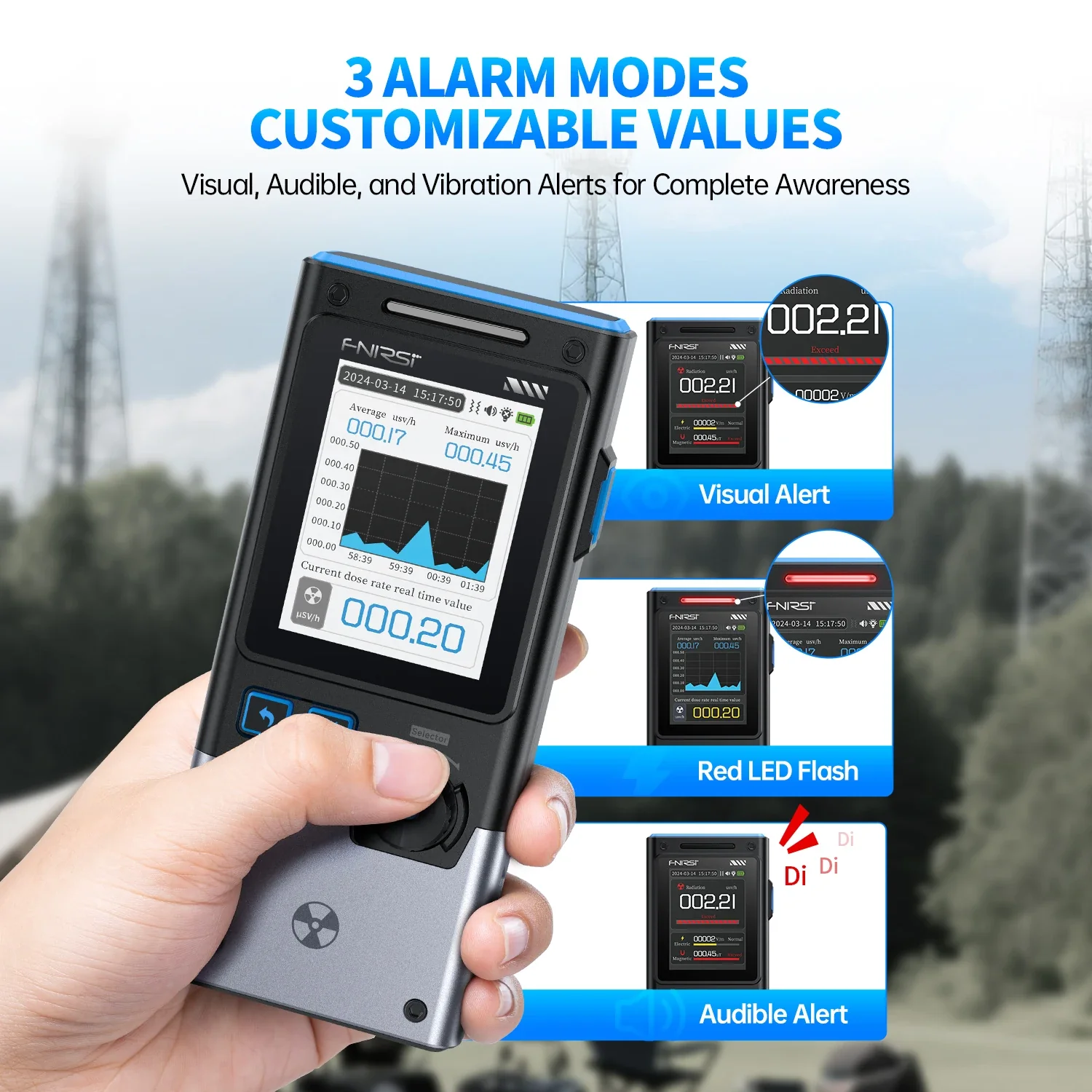

4. Various alarm modes

This area is highlighted, indicating that the alarm mode setting is entered and the corresponding setting content is displayed. There are three alarm modes: indicator light, vibration, and volume alarm. The three can be matched with each other and selected according to the user's wishes.

Basic Parameters

1.Screen material: 2.4-inch color screen

2.Backlight: Brightness Adjustable

3.Power supply: TYPE-C (5V/1A)

4.Battery: 1500mAh

5.Languages: Chinese, English

6.Product size: ≈138×63×32mm

7.Net weight: ≈141g

Measurement Parameters

1.NR

Range: 0.01usv/h-999.99usv/h

Units: usv/h

Accuracy: 0.01usv/h

2.EF

Range: 1V/m - 1999V/m

Units: V/m

Accuracy: 1V/m

3.MF

Range: 0.01μT-99.99μT

Units: μT

Accuracy: 0.01μT

4.ower: 0.2-1000mW/m²

Detection

1.Detection Radiation Type: Ionizing radiation (gamma rays, etc.)

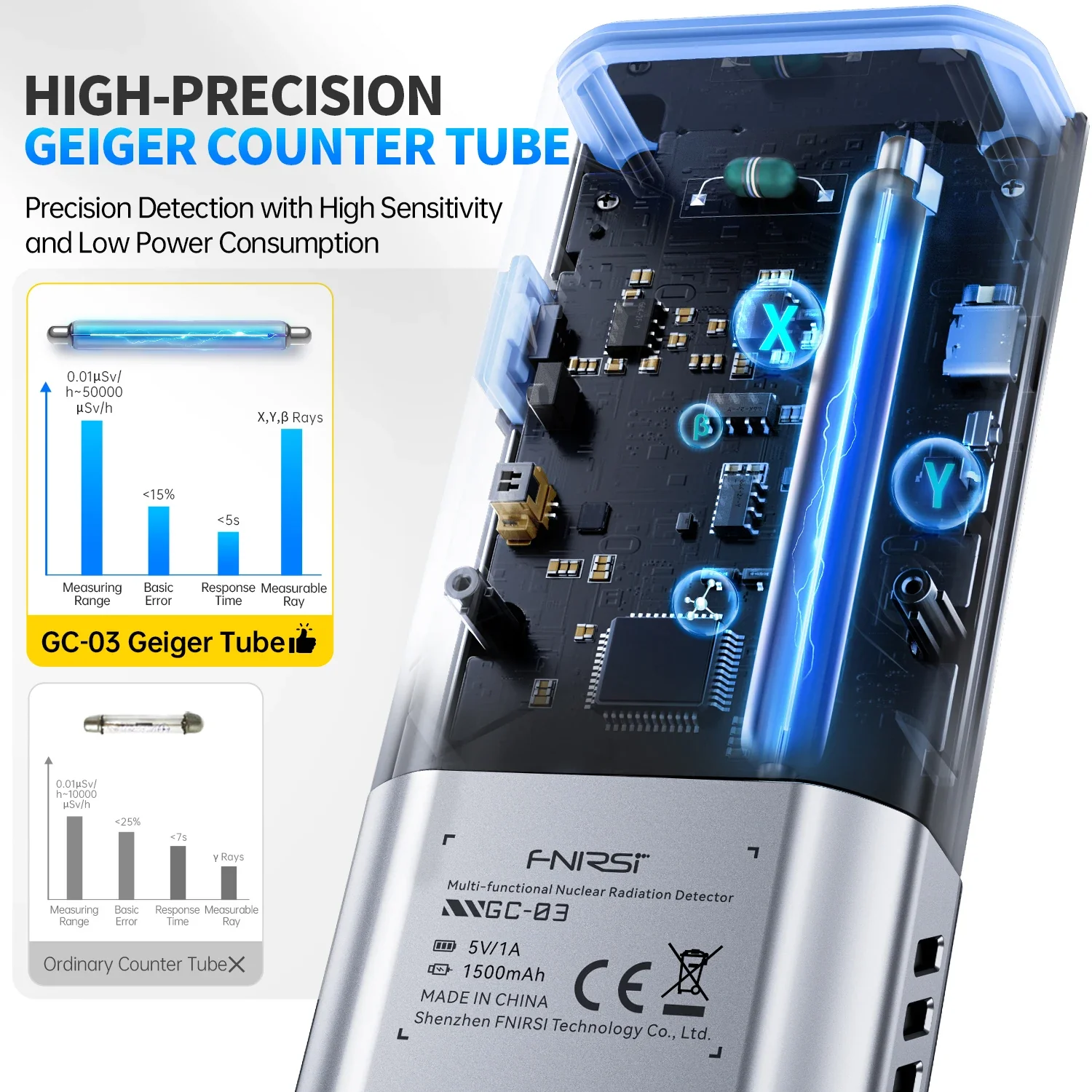

2.Detector: Energy compensation GM tube (Geiger counter tube)

3.Dose Current Rate: 0.00-10000uSv/h (10mSv/h)

4.Cumulative Dose Equivalent: 0.00uSv-500.0mSv

5.Energy Range: 48keV-1.5MeV ≤ ±30% (for 137Cs-)

6.Sensitivity: 80CPM/uSv

7.Dose Unit: uSv/h, uGy/h, mR/h, cps, cpm

8.Alarm Mode: Light, vibration, sound

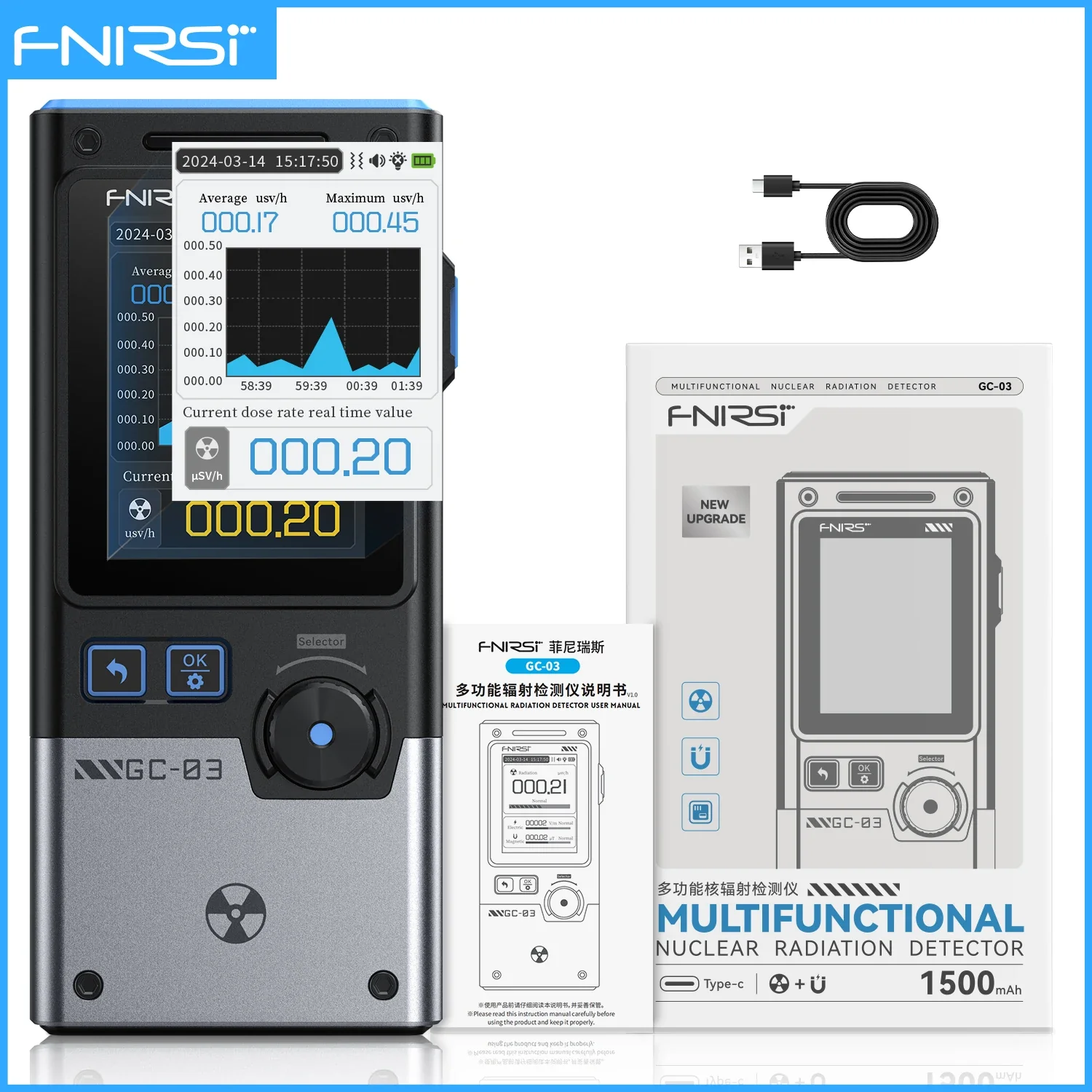

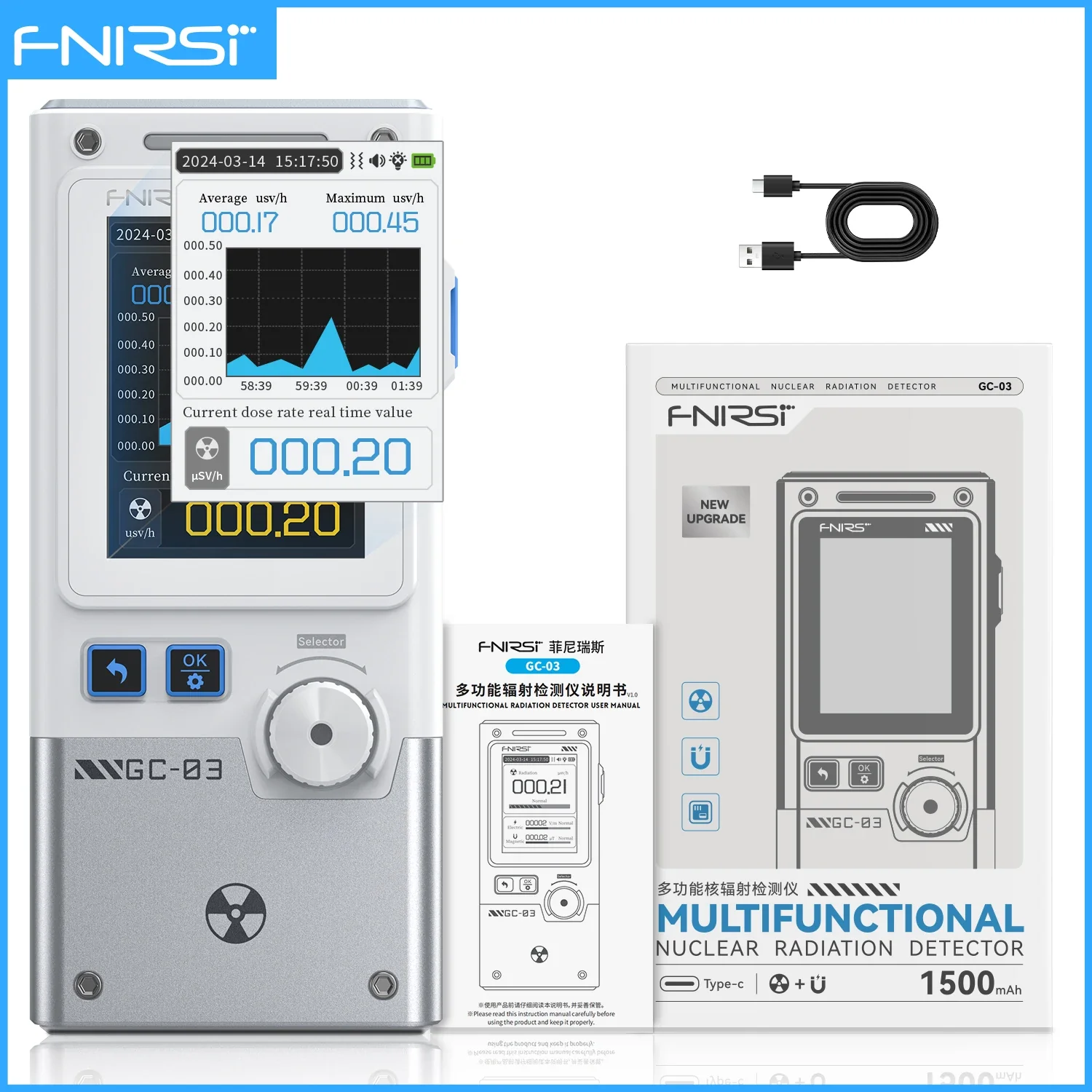

Packing list

1.GC-03 Host*1

2.Packing Box*1

3.User Manual *1

4.Data Cable*1
