ANENG MH14 Digital Megohmmeter Insulation Resistance Meter AC 200V Voltage Professional Multimeter Ground Voltmeter Ohm Tester
ANENG MH14 Digital Megohmmeter Insulation Resistance Meter AC 200V Voltage Professional Multimeter Ground Voltmeter Ohm Tester
Overview:

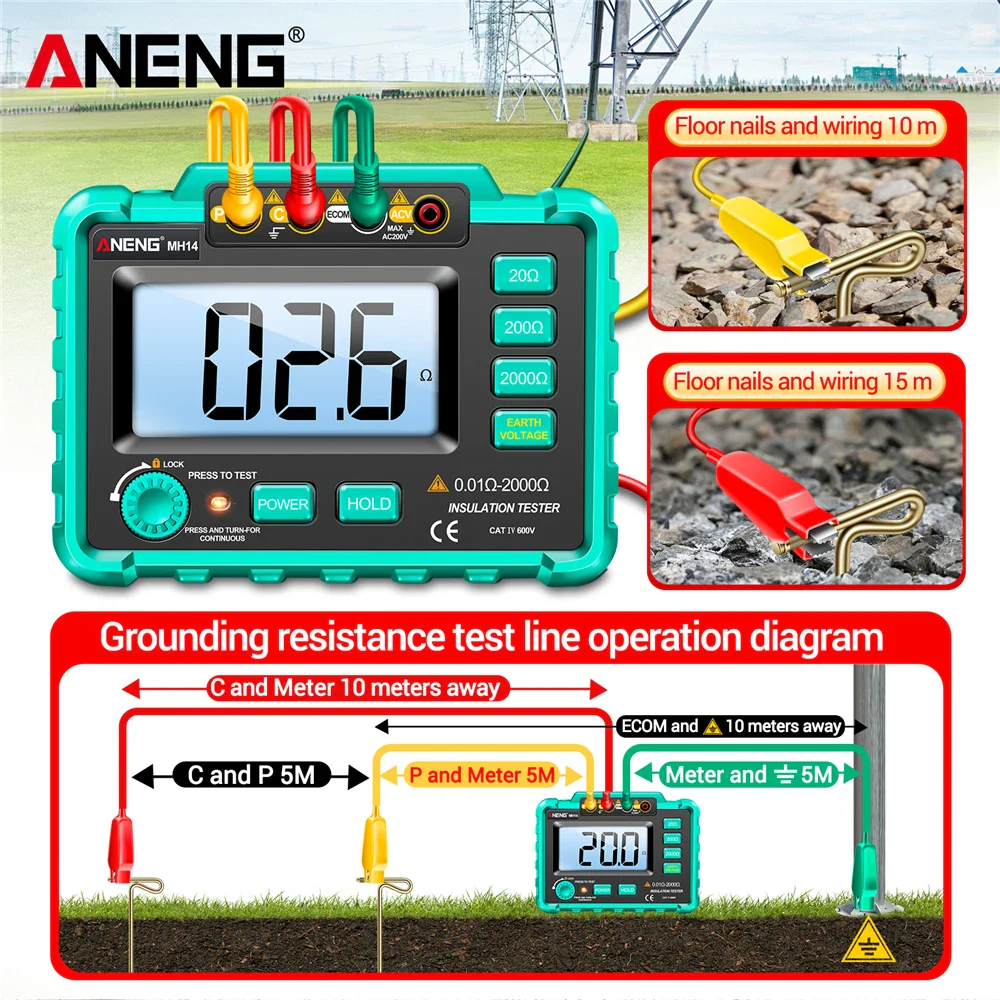

The grounding resistance tester is a professional instrument for testing the grounding resistance of electrical equipment.It improves the circuit,structure and process of the traditional grounding resistance tester,in addintion,the style is beautiful and pratical,the function is more complete,the accuracy is higher,the operation is more convenient and reliable,the dust-proof and moisture-proof structure is more suitable for feild use.It can be used for grounding resistance values of various power systems, power equipment,lighting protection equipment and other grounding systems,as well as AC voltage.
Characteristics:
Display:LCD Display,1999 counts
over-range indication:when the upper limits is exceeded,only the highest digit displays"1"
Power supply:5# alkaline battery LR6(1.5V)*8(optional external power adpater option) Under-voltage indication when there is insufficient voltage.
Not include batteries.
Power comsumption:the power consumption is <=800mv when testing no load
Streamline design and anti-earthquake requirements

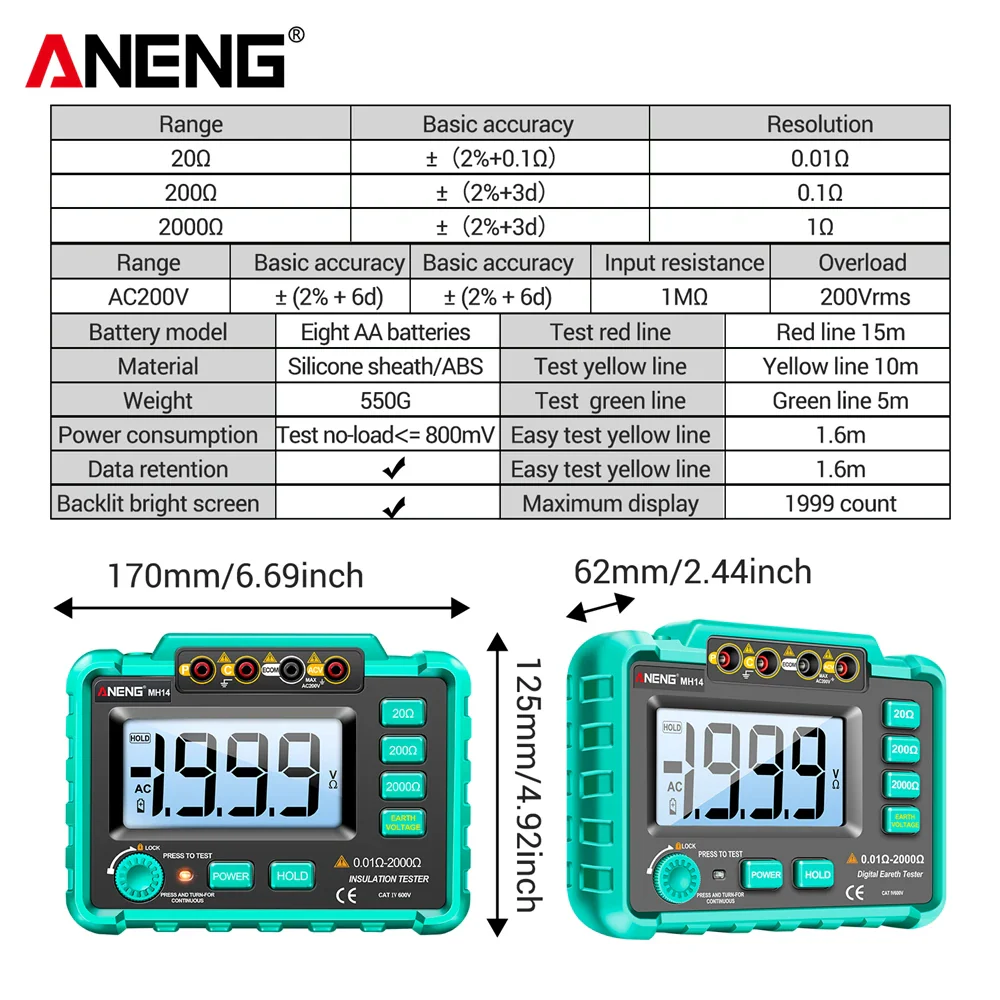

Specification:
1.Grounding resistance:
|
Range |
Basic Accuracy |
Resolution |
|
20Ω |
+-(2%+0.1Ω) |
0.01Ω |
|
200Ω |
+-(2%+3d) |
0.1Ω |
|
2000Ω |
+-(2%+3d) |
1Ω |
2.Ground Voltage(50Hz~200Hz)
|
Range |
Basic Accuracy |
Resolution |
Input impedance |
Overload |
|
AC200V |
+-(2%+6d) |
0.1V |
1MΩ |
200Vrms |

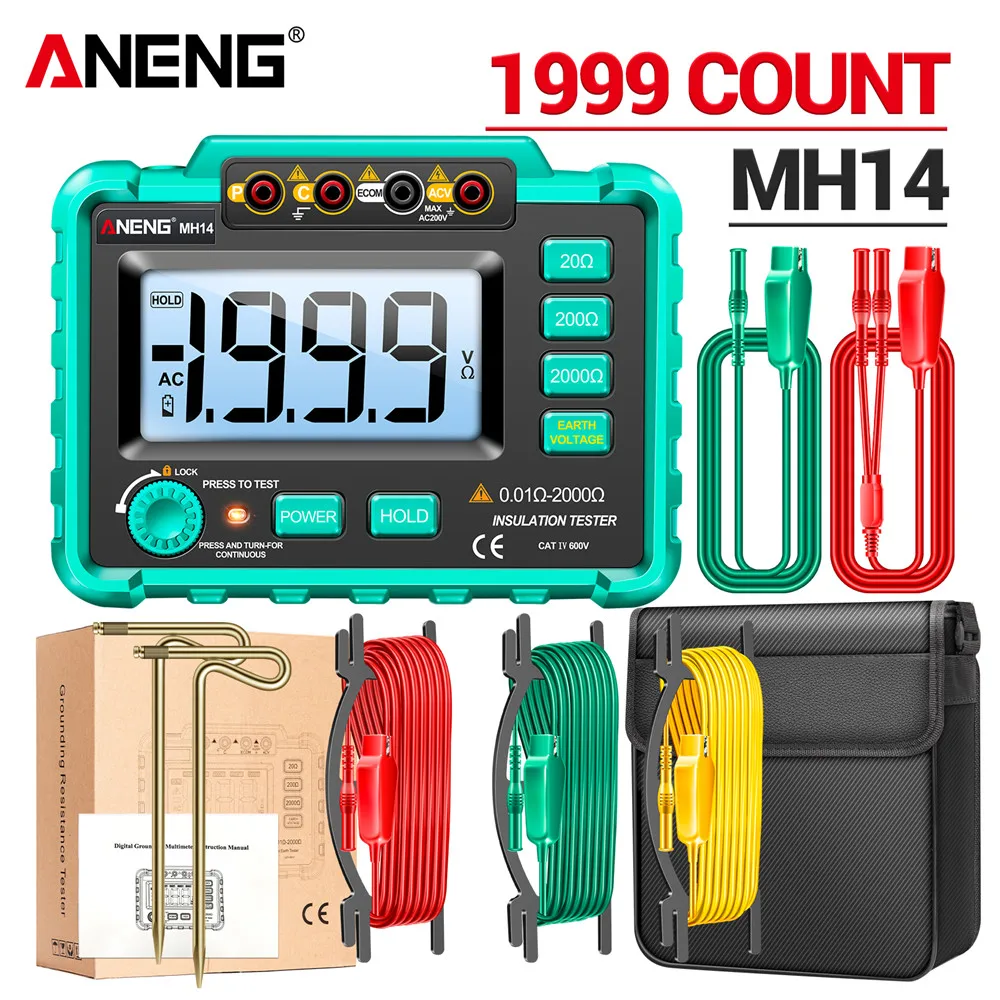

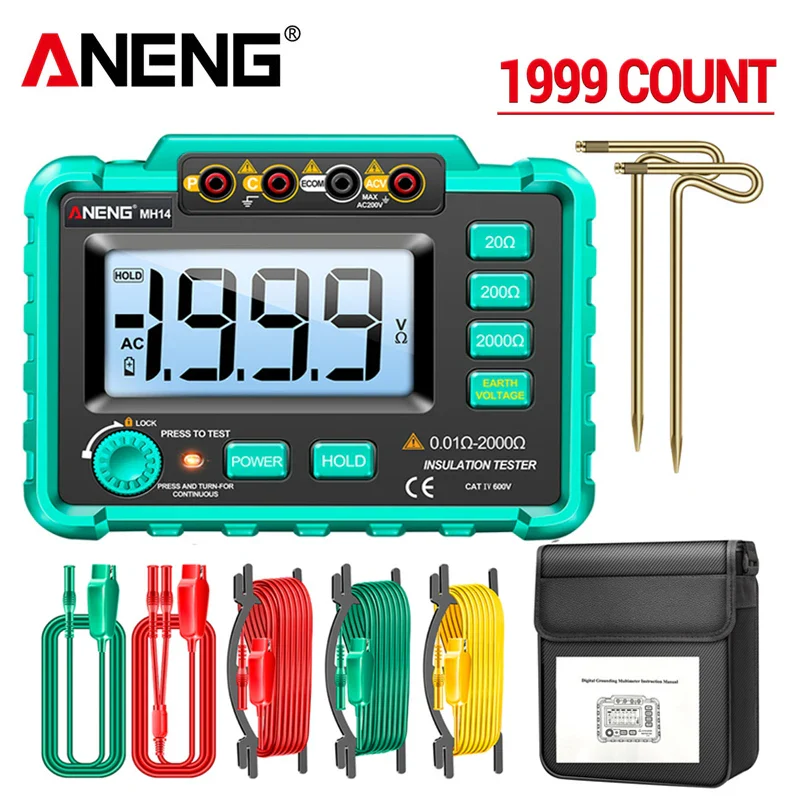

Package Include:
As the picture showed
