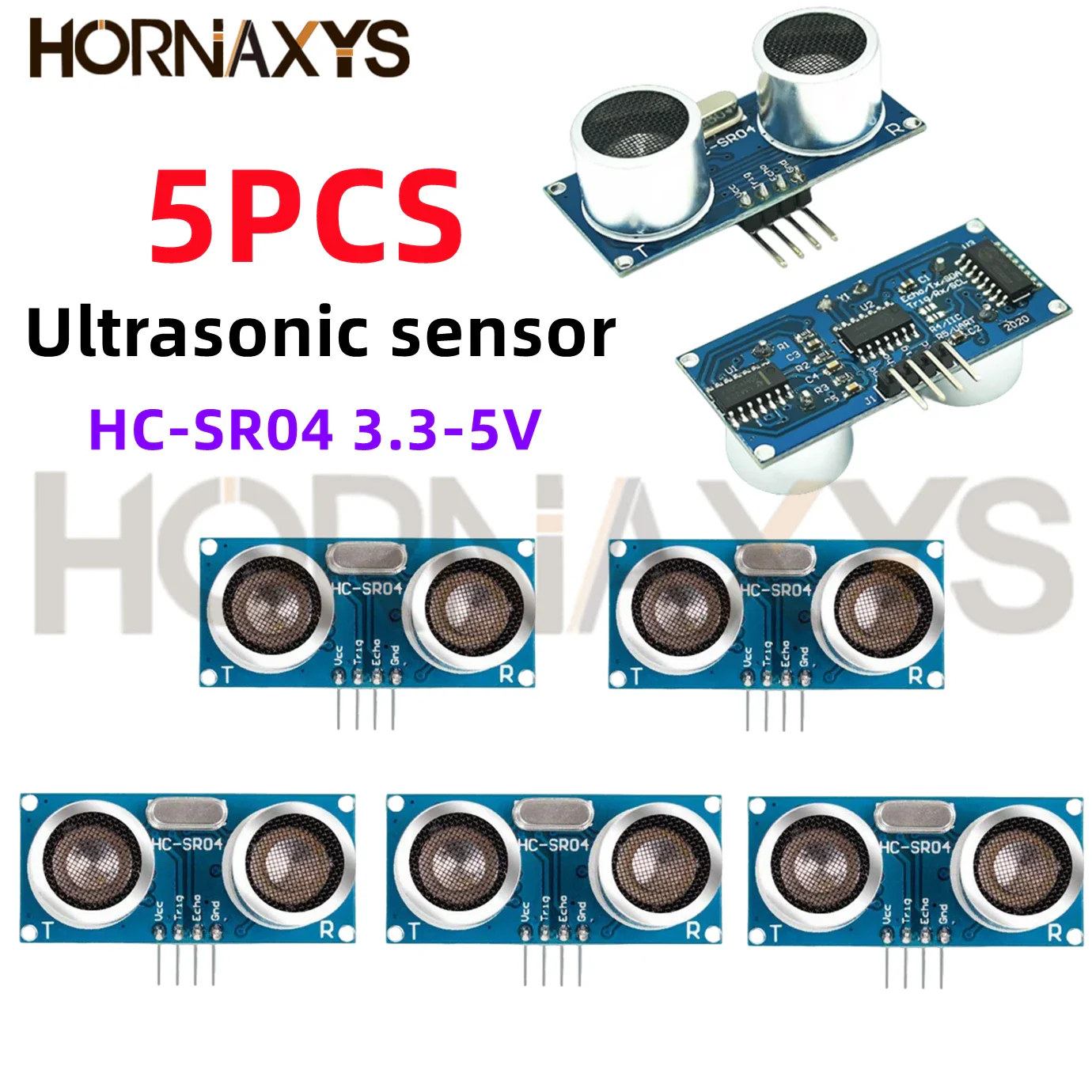

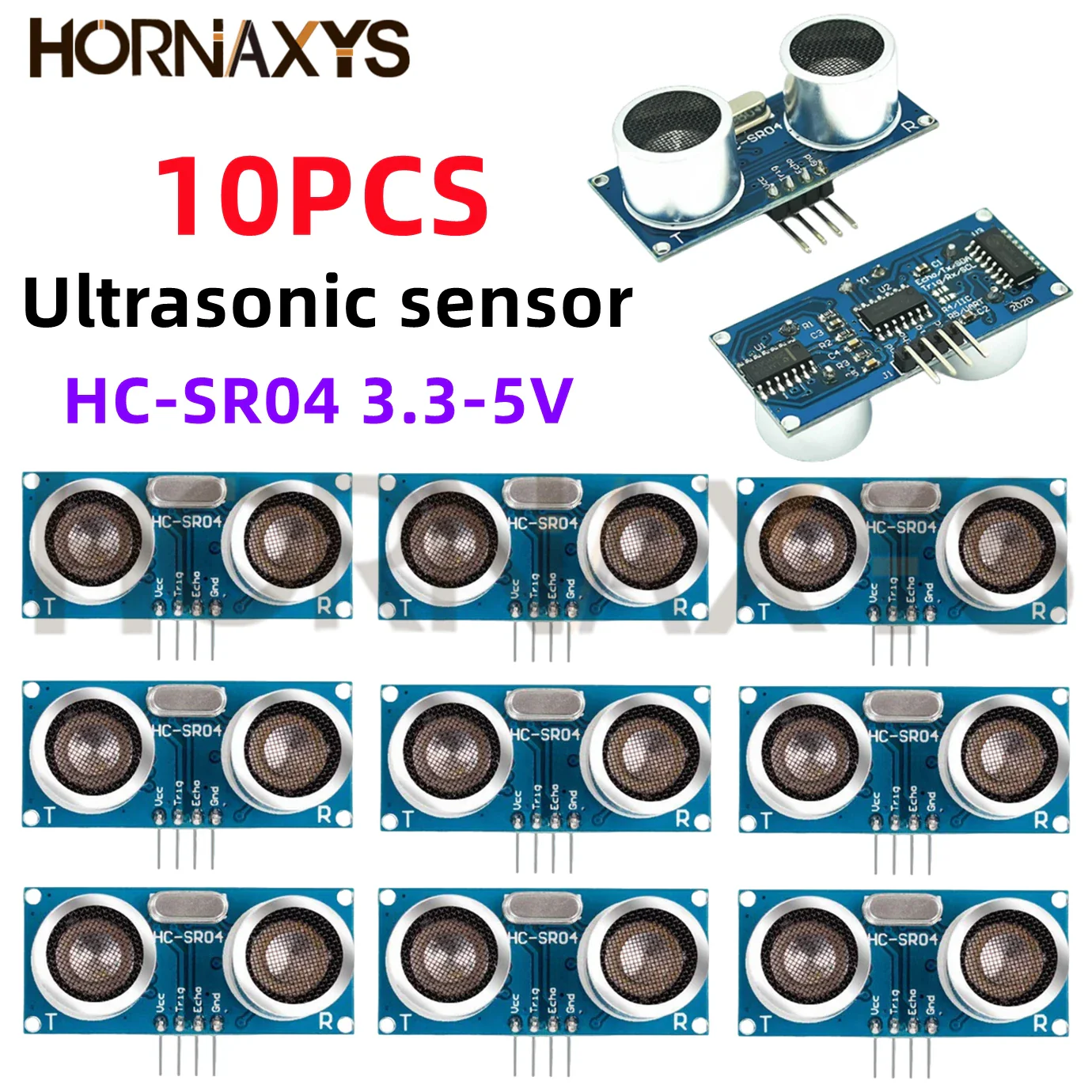

1-10PCS/Ultrasonic sensor HC-SR04 HCSR04 to world Wave Detector Ranging Module HC SR04 Distance Sensor For Arduino 3.3V-5V
Specification:
Origin: Mainland China
Model Number: Ultrasonic Ranging Module
Theory: Ultrasonic Sensor
Wide Voltage Operation: 3v-5.5v, Fully Compatible With Hc-Sro4 Software And Hardware Size
Detection Distance:
5v:2cm-450cm/0.78-175.5in
3.3v:2cm-400cm/0.78-156in
Detection Angle: <15
Adopt Industrial Grade Mcu, Working Temperature: -20℃-80℃.
Size: 45.00x20.00x15.00mm/1.77x0.79x0.59inch
1.HC-SRO4-P is a wide voltage ultrasonic distance measuring module.
2. The module form factor and software are fully compatible with the old version of HC-SRO4.
3. Seamless switching with the old version of HC-SRO4.
4. The low operating voltage as low as 3V enables it to be directly connected with 3.3V-powered MCL.
Origin: Mainland China
Model Number: Ultrasonic Ranging Module
Theory: Ultrasonic Sensor
Wide Voltage Operation: 3v-5.5v, Fully Compatible With Hc-Sro4 Software And Hardware Size
Detection Distance:
5v:2cm-450cm/0.78-175.5in
3.3v:2cm-400cm/0.78-156in
Detection Angle: <15
Adopt Industrial Grade Mcu, Working Temperature: -20℃-80℃.
Size: 45.00x20.00x15.00mm/1.77x0.79x0.59inch
1.HC-SRO4-P is a wide voltage ultrasonic distance measuring module.
2. The module form factor and software are fully compatible with the old version of HC-SRO4.
3. Seamless switching with the old version of HC-SRO4.
4. The low operating voltage as low as 3V enables it to be directly connected with 3.3V-powered MCL.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
